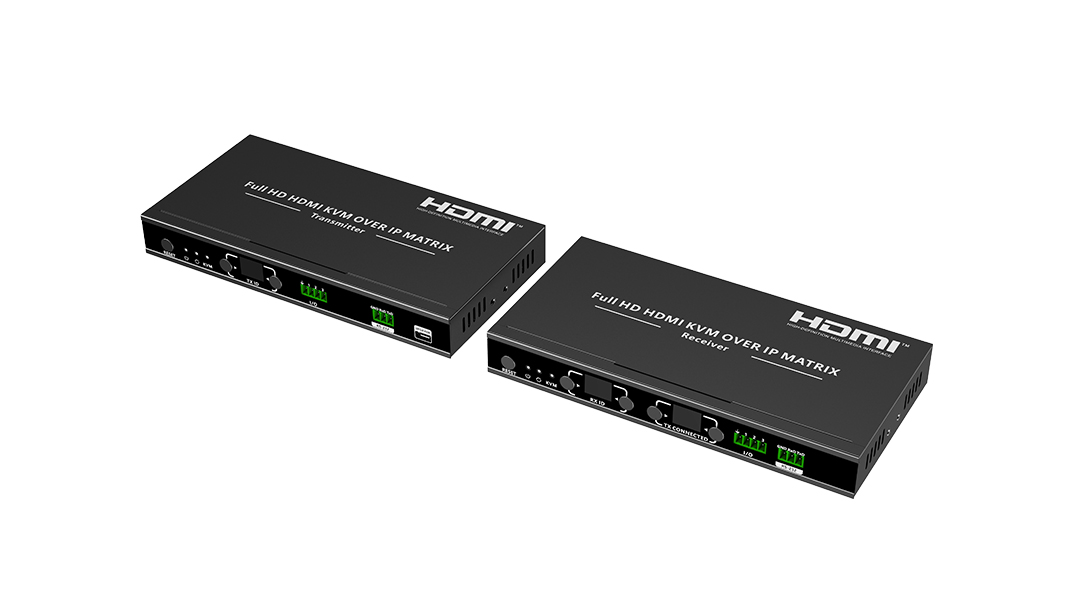

iMMS-IM01-KVM
Full HD HDMI™ KVM over IP Matrix
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 1920x1080P@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one or many-to-many connections through the gigabit switch.
5. Supports RS-232 passthrough and control.
6. The transmitter supports HDMI loop out.
7. Supports KVM function.
8. Supports I/O interface control.
9. Supports POE(Power over Ethernet).
10. Creating multi-screen splicing with up to 5x5 (also include 1x1/1x2/ 1x3/1x4/1x5/2x1/2x2/2x3/2x4/2x5/3x1/3x2/3x3/3x4/3x5/4x1/4x2/ 4x3/4x4/4x5/5x1/5x2/5x3/5x4/5x5) video wall through switch and controlled by APP.
11. Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration (Require APP control
operation while connect
More
LKV373TypeC-KVM-M5.0
Type-C KVM OVER IP EXTENDER
· Features
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 1920x1200@60Hz resolution, backwards compatible.
3. Compatible with Cat5/5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one, one-to-many, many-to-one and many-to-many connection through the gigabit switch.
5. Supports KVM control signal passback.
6. The transmitter can take power from the source signal device through the Type-C port.
7. Supports 256 signal source inputs and 256 signal outputs.
8. Signal sources can be switched via the APP.
9. Firmware can be upgraded through Type-C or Micro USB.
10. Lightning protection, surge protection, ESD protection.
11. Supports stable 24/7 operation.
More
LKV473TypeC-KVM-M5.0
4K 60Hz Type-C KVM OVER IP EXTENDER
· Features
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 4096 x 2160@60Hz resolution, backwards compatible.
3. Compatible with Cat5/5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one, one-to-many, many-to-one and many-to-many connection through the gigabit switch.
5. Supports KVM control signal passback.
6. The transmitter can take power from the source signal device through the Type-C port.
7. Supports 256 signal source inputs and 256 signal outputs.
8. Signal sources can be switched via the APP.
9. Firmware can be upgraded through Type-C or Micro USB.
10. Lightning protection, surge protection, ESD protection.
11. Supports stable 24/7 operation.
More
LKV483TypeC-M5.0
4K 60Hz Type-C OVER IP EXTENDER
· Features
1. Built on ipcolor STREAM. technology to deliver high-definition and low-latency transmission.
2. Supports up to 4096 x 2160@60Hz resolution, backwards compatible.
3. Compatible with Cat5/5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one ,one-to-many, many-to-one and many-to-many connection through the gigabit switch.
5. Supports IR pass-back(20～60KHz).
6. The transmitter can take power from the source signal device through the Type-C port.
7. Supports 256 signal source inputs and 256 signal outputs.
8. Signal sources can be switched via the APP.
9. Firmware can be upgraded through Type-C or Micro USB.
10. Lightning protection, surge protection, ESD protection.
11. Supports stable 24/7 operation.
More
LKV473TypeC-M5.0
4K 60Hz Type-C OVER IP EXTENDER
· Features
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 4096 x 2160@60Hz resolution, backwards compatible.
3. Compatible with Cat5/5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one, one-to-many, many-to-one and many-to-many connection through the gigabit switch.
5. The transmitter can take power from the source signal device through the Type-C port.
6. Supports 256 signal source inputs and 256 signal outputs.
7. Signal sources can be switched via the APP.
8. Lightning protection, surge protection, ESD protection.
9. Supports stable 24/7 operation.
More
LKV373TypeC-M5.0
Type-C OVER IP EXTENDER
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 1920x1200@60Hz resolution, backwards compatible.
3. Compatible with Cat5/5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one, one-to-many, many-to-one and many-to-many connection through the gigabit switch.
5. The transmitter can take power from the source signal device through the Type-C port.
6. Supports 256 signal source inputs and 256 signal outputs.
7. Signal sources can be switched via the APP.
8. Lightning protection, surge protection, ESD protection.
9. Supports stable 24/7 operation.
More
LKV383Audio-M5.0
Over IP Audio Extender
· Features
1. Built on ipcolor STREAM. technology to deliver low-latency transmission.
2. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
3. Supports direct one-to-one connections, as well as one-to-many, many-to-one, and many-to-many connections via an IGMP switch.
4. Transmitter: accepts 3.5mm, 6.35mm, RCA and LGR left/right audio inputs. Receiver: delivers 3.5mm, 6.35mm, RCA and LGR left/right audio outputs.
5. Easily switch audio sources by dragging and dropping within the companion mobile app.
6. Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration.
7. Firmware upgrading via Micro USB port.
8. Lightning protection, surge protection, ESD protection.
9. Supports stable 24/7 operation.
More
