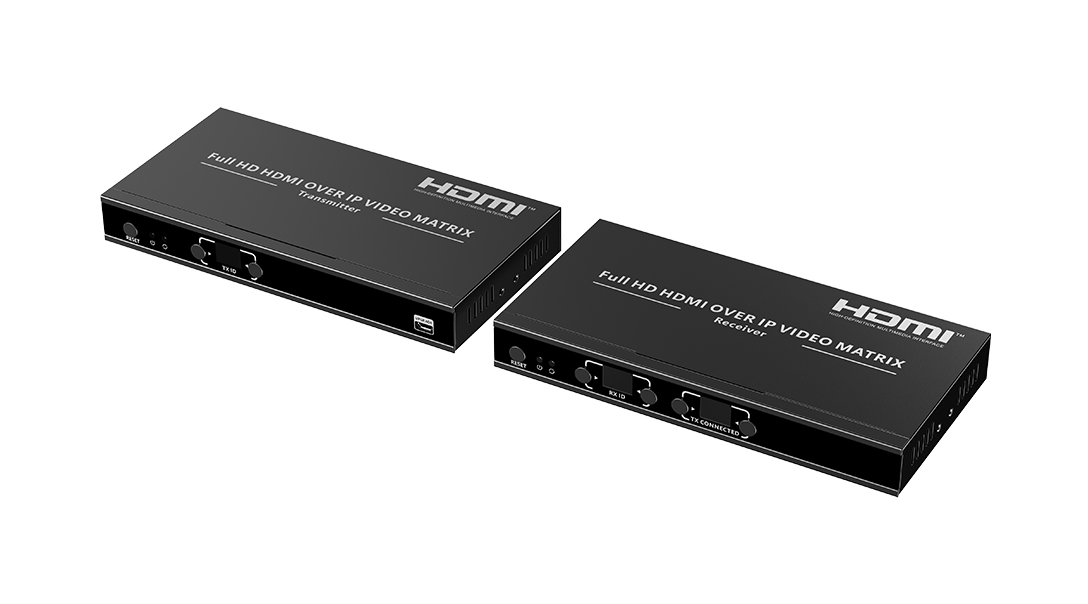

LKV383-M5.0
HDMI over IP Extender
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 1920x1200@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one ,one-to-many, many-to-one and many-to-many connection through the gigabit switch.
5. Supports IR pass-back(20～60KHz).
6. Supports 256 signal source inputs and 256 signal outputs.
7. Signal sources can be switched via the APP for flexible many-to-many matrix configuration.
8. Firmware upgrading via Micro USB port.
9. Lightning protection, surge protection, ESD protection.
10. Supports stable 24/7 operation.
More

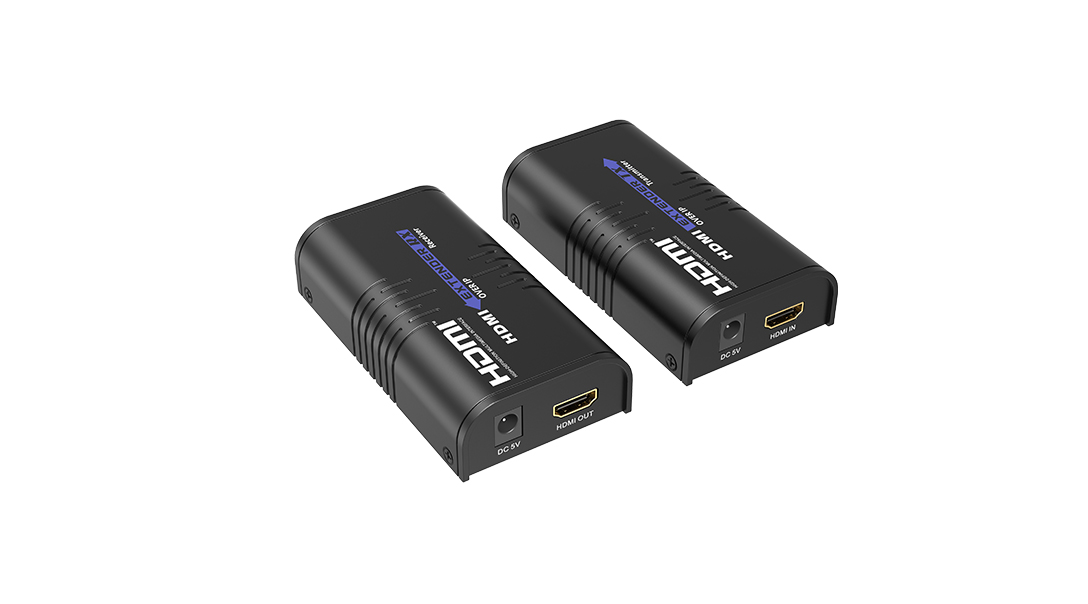

LKV373-M5.0
HDMI over IP Extender
1. Built on ipcolor STREAM. technology to deliver high-definition and low-latency transmission.
2. Supports up to 1920 x 1200@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one, one-to-many, many-to-one and many-to-many connection through the gigabit switch.
5. Supports 256 signal source inputs and 256 signal outputs.
6. Signal sources can be switched via the APP for flexible many-to-many matrix configuration.
7. Lightning protection, surge protection, ESD protection.
8. Supports stable 24/7 operation.
More

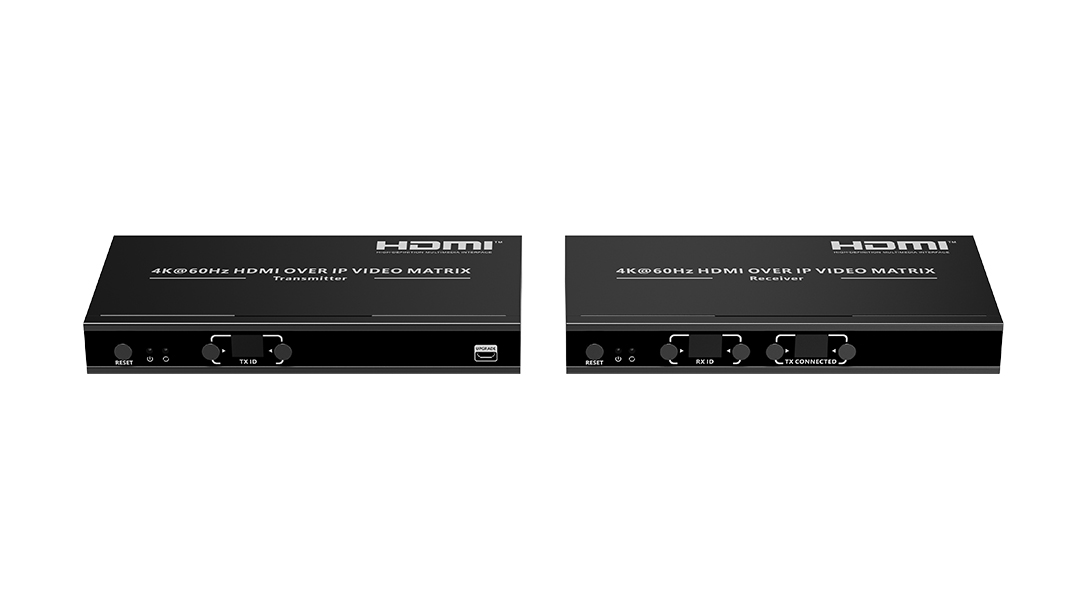

LKV483-M5.0
4K 60Hz HDMI over IP Extender
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 4096 x 2160@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one ,one-to-many, many-to-one and many-to-many connection through the gigabit switch.
5. Supports IR pass-back(20～60KHz).
6. Supports 256 signal source inputs and 256 signal outputs.
7. Signal sources can be switched via the APP for flexible many-to-many matrix configuration.
8. Firmware upgrading via Micro USB port.
9. Lightning protection, surge protection, ESD protection.
10. Supports stable 24/7 operation.
More
LKV473KVM-M5.0
4K 60Hz HDMI KVM over IP Extender
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 4096 x 2160@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one, one-to-many, many-to-one and many-to-many connection through the gigabit switch.
5. Supports KVM control signal passback.
6. Supports 256 signal source inputs and 256 signal outputs.
7. Signal sources can be switched via the APP for flexible many-to-many matrix configuration.
8. Firmware upgrading via Micro USB port.
9. Lightning protection, surge protection, ESD protection.
10. Supports stable 24/7 operation.
More

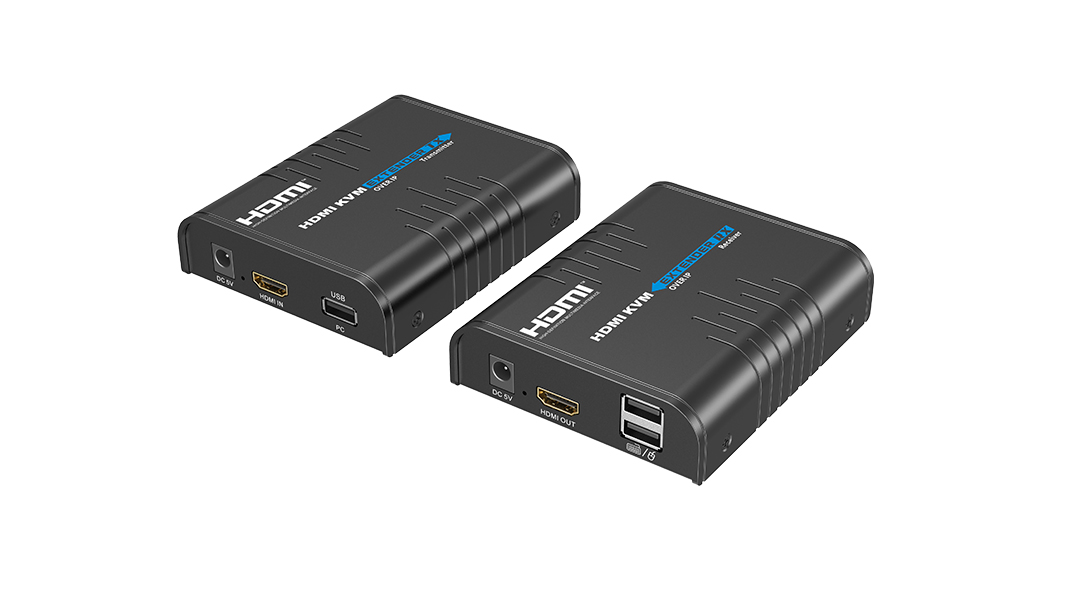

LKV373KVM-M5.0
HDMI KVM over IP Extender
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 1920x1200@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one, one-to-many, many-to-one and many-to-many connection through the gigabit switch.
5. Supports KVM control signal passback.
6. Supports 256 signal source inputs and 256 signal outputs.
7. Signal sources can be switched via the APP for flexible many-to-many matrix configuration.
8. Firmware upgrading via Micro USB port.
9. Lightning protection, surge protection, ESD protection.
10. Supports stable 24/7 operation.
More
DSS02W
Digital Signage System
· Features
1. Supports 4K@60Hz ultra high-definition advertising.
2. Supports remote management and advertising distribution by APP.
3. Supports multiple operating systems, such as Android, iOS, Windows,macOS, etc.
4. Supports insert a USB drive to play ads automatically in a loop.
5. Supports account management, facilitating the management of terminals.
6. Supports dual-mode networking via WiFi and Ethernet.
7. Data encryption ensures security.
8. Lightning protection, surge protection, ESD protection.
9. Stable 24/7 operation.
More
DSS02
Digital Signage System
Features
1. Supports 4K@60Hz ultra high-definition advertising.
2. Supports remote management and advertising distribution by APP.
3. Supports multiple operating systems, such as Android, iOS, Windows，macOS, etc.
4. Supports insert a USB drive to play ads automatically in a loop.
5. Supports account management, facilitating the management of terminals.
6. Supports dual-mode networking via WiFi and Ethernet.
7. Data encryption ensures security.
8. Lightning protection, surge protection, ESD protection.
9. Stable 24/7 operation.
More
iMMS-RX-Multiview
HDMI OVER IP MULTIVIEW PROCESSOR
Features
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 4096 x 2160@60Hz resolution, backwards compatible.
3. Compatible with CAT5e/6 and above networking cables, the transmission distance can reach up to 120 meters when using CAT6 or above networking cables. The actual distance may vary slightly due to different switch performances.
4. Supports switch cascading.
5. Supports RS-232 Control.
6. Supports RS-485 Control.
7. Supports IR learning remote and control device by APP(20～60KHz).
8. Supports I/O interface control.
9. Supports POE(Power over Ethernet).
10. Support for 3.5mm L/R Channel Audio Separation.
11. After connecting to the iMCS over IP matrix, it supports receiving and processing multiple signals simultaneously. Paired with the iMCS APP, allowing remote control of the screen display view, providing four-panel and nine-panel screen view, also adjusting the view size and position freely.
12. Firmware upgrading
More
