LKV223

4K@30Hz 70M Zero-Latency Visually-Lossless Point to Point Extender

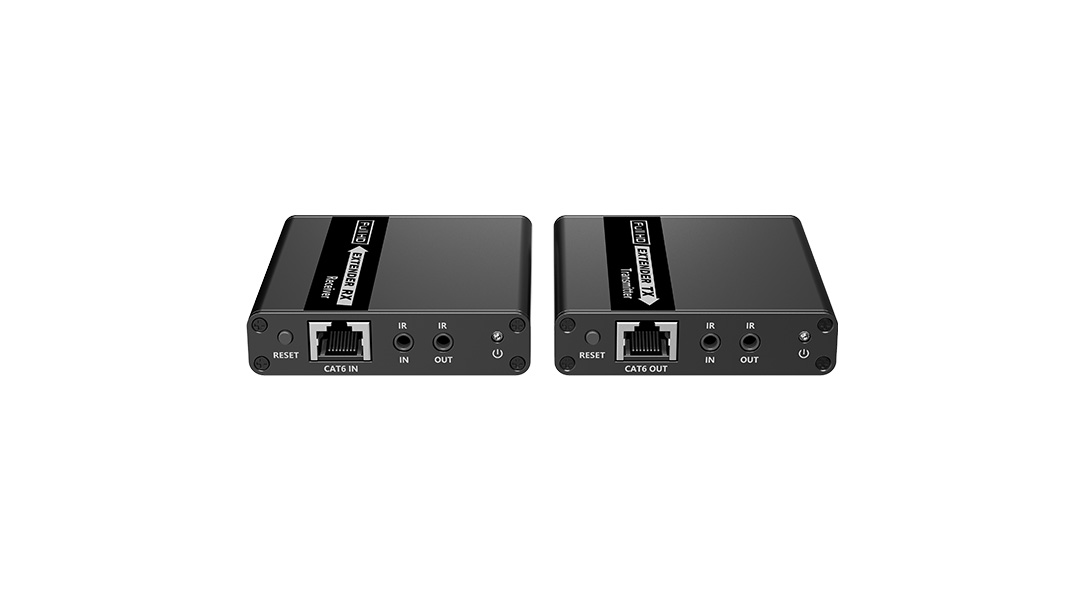

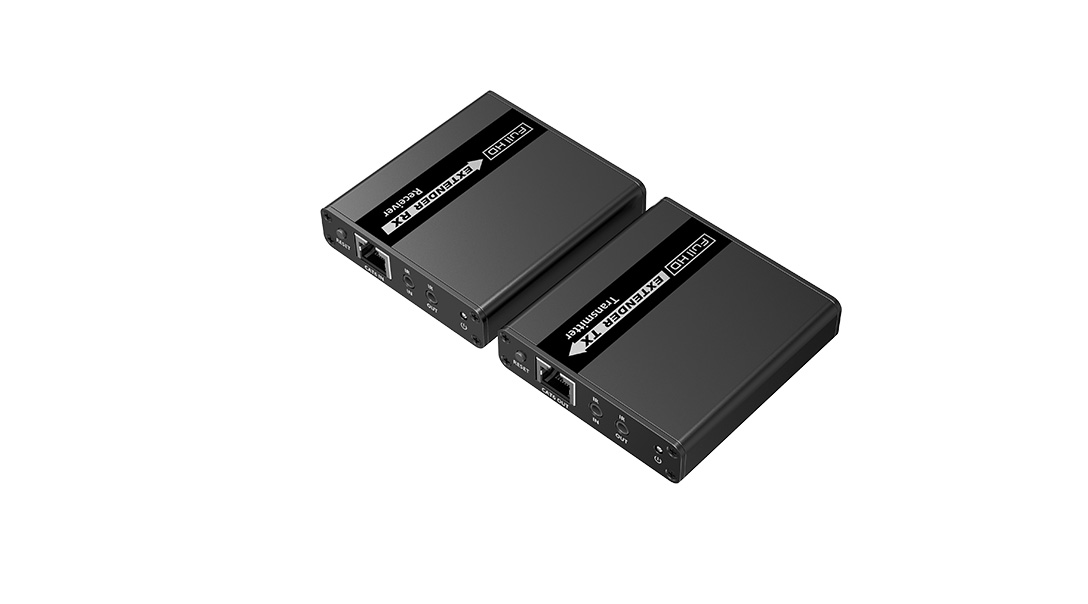

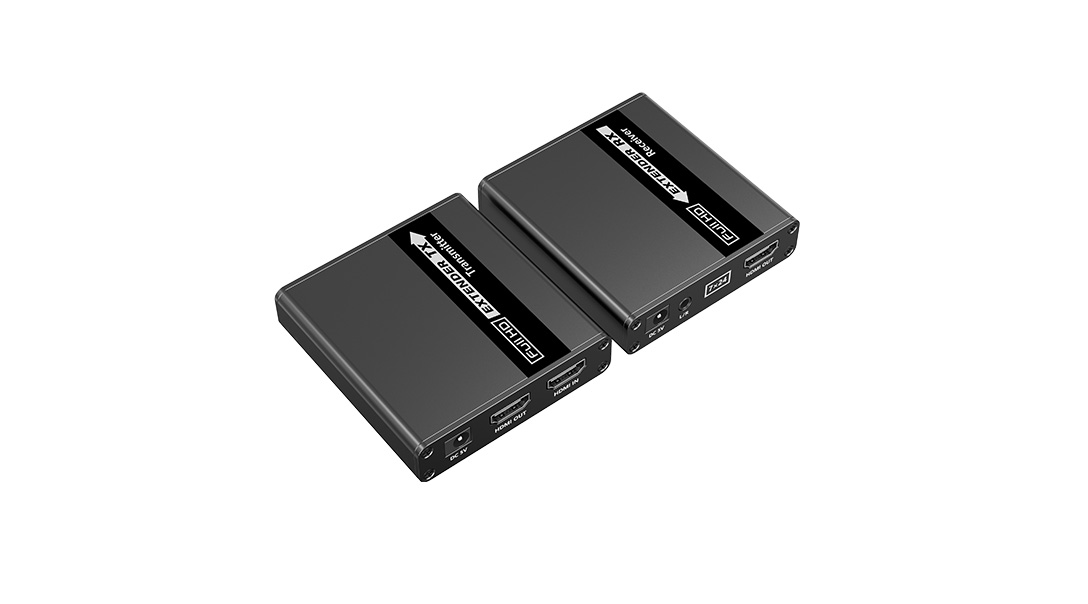

This HDMI™ Extender includes a transmitter unit and a receiver unit, allows the HDMI™ signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports bi-directional IR pass-back and 3.5 mm stereo audio output. It is perfect for outdoor advertising, monitor system, home entertainment, conference, etc.

Introduction

Parameters

Downloads


Voltage/Current

DC5V/500mA

Power consumption

TX<2.5W RX<2.5W

HDMI compliance

HDMI 1.4

HDCP compliance

HDCP 1..4

HDMI resolution

800x600、1024x768、1280x720、 1280x960、1366x768、1440x900、 1680x1050、1920x1080、480i@60Hz、 480p@60Hz、576i@50Hz、 576p@50Hz、720p@50/60Hz、 1080i@50/60Hz、 1080p@24/25/30/50/60Hz、 3840x2160@24/25/30Hz

Supports audio formats

PCM, LPCM, DTS HD, DTS Audio

Input and output TMDS signal

0.7~1.2Vp-p(TMDS)

Input and output DDC signal

5Vp-p(TTL)

Input cable length

≤8m(AWG24)

Output cable length

≤8m(AWG24)

Cat6/6A/7

1080p@60Hz≤70m
4K@30Hz≤40m

Electrostatic protection of the whole machine

Implementation of the standard: IEC61000-4-2 1a Contact discharge level 2 (4KV) 1b Air discharge level 3 (8KV)

Working temperature

-20~60℃

Storage temperature

-30~70℃

Humidity (no condensation)

0～90%RH

Dimension

75.0(L) x 80.0(W) x 18.0(H)mm

Material

Aluminum alloy material + crystal panel

Treatment process

Grit blast

Color

Black

Weight

TX:160g RX:160g
