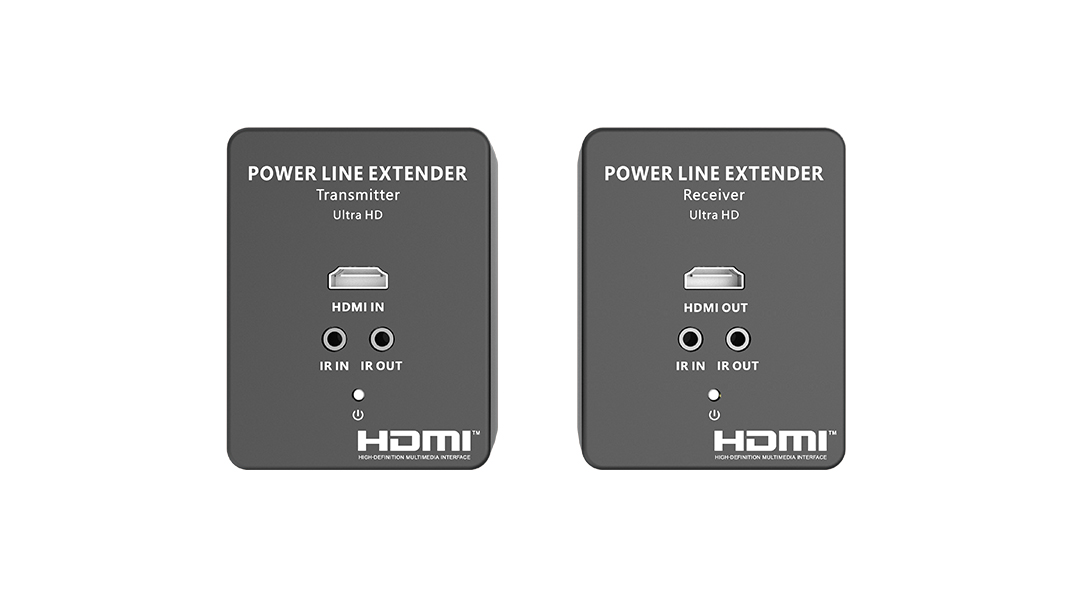

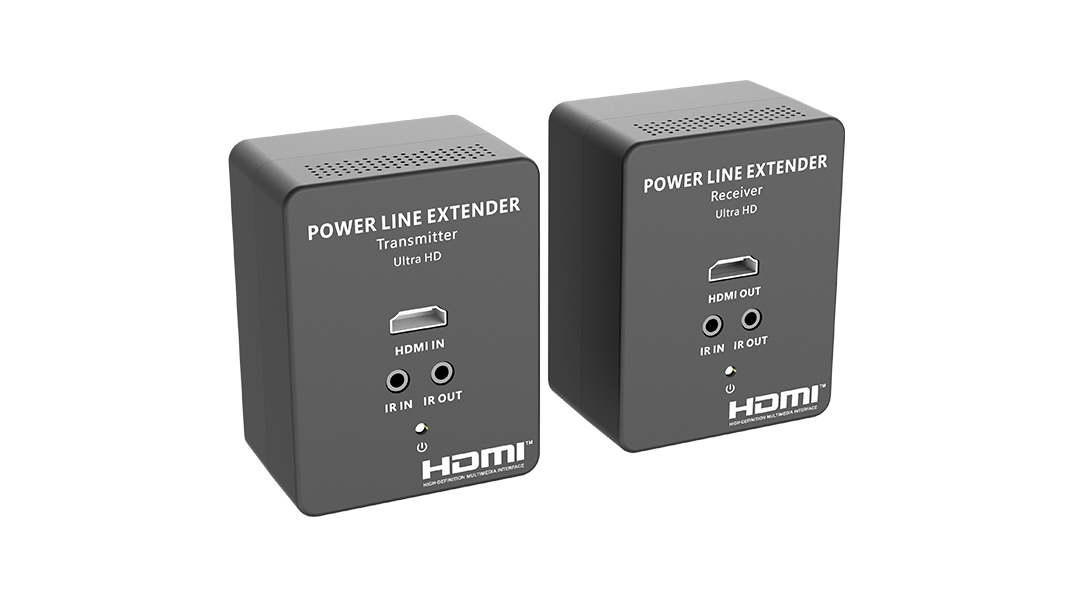

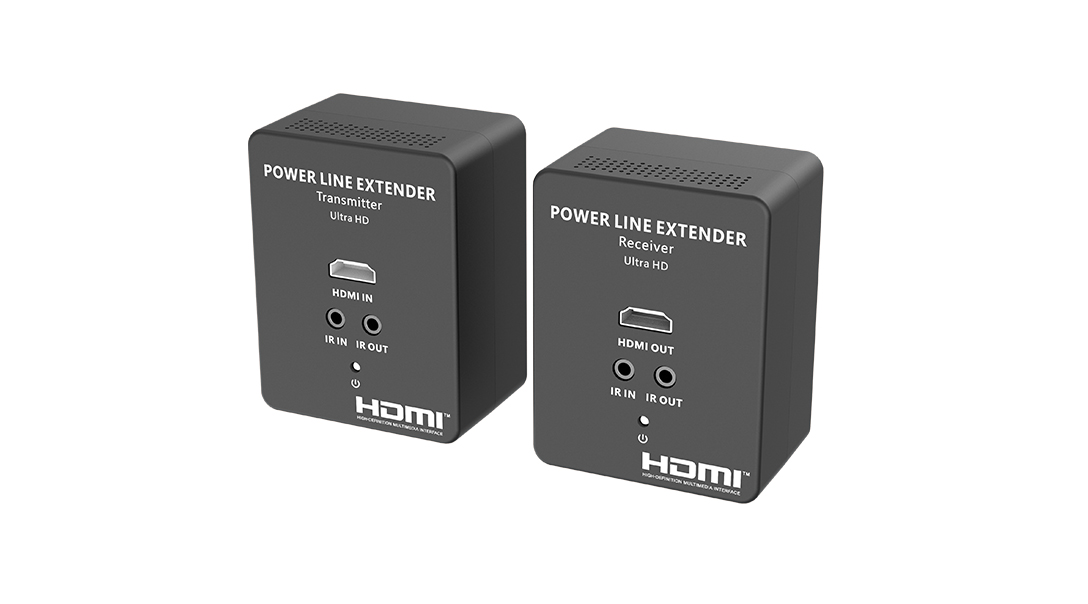

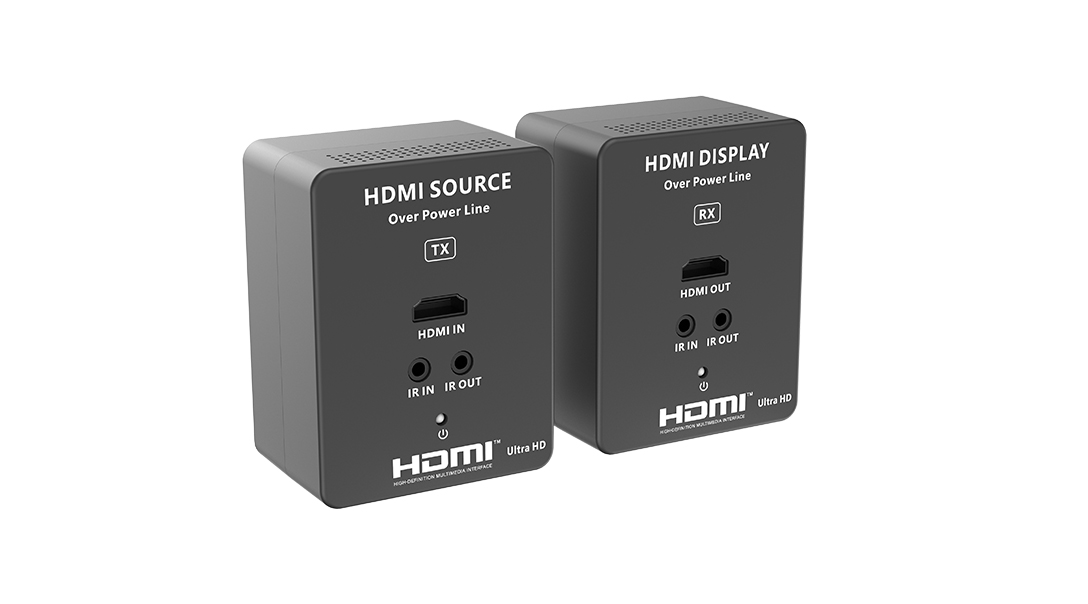

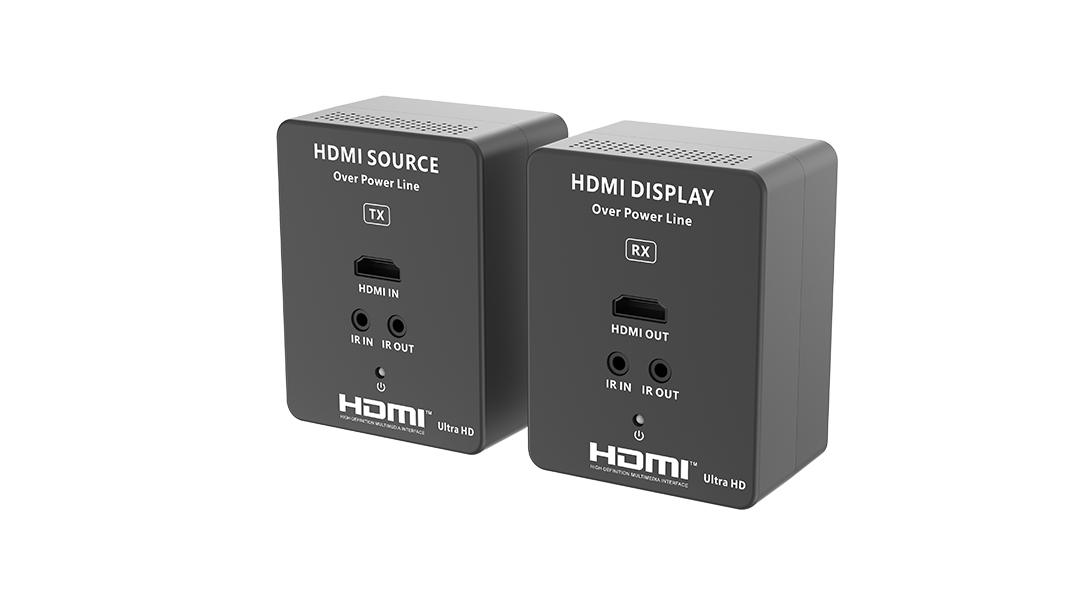

LKV392

4K@60Hz One-to-Many over Power Line Extender

· Features
1. It transmits signals over existing powerlines and connects through any
power outlet,offering a cabling-free solution.
2. Supports point-to-point connection.
3. Supports point-to-multipoint connectivity without requiring a switch.
4. It can extends 4K@60Hz signal up to 300M under the condition of
fluent electric power environment.
5. Supports bi-directional IR pass-back(20~60KHz);
6. Easy setup, plug and play
7. Fireproof raw material is used to ensure safety and reliability.
Introduction
Parameters
Downloads


Maximum transfer rate
18Gbps
Compatibility
HDMI 2.0
Compatibility
HDCP 1.4/HDCP 2.2
Resolutions
4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600
Connection types
One-to-one connection
One-to-many connection
Transmission distance
300M
Transmission latency
1080P: 80~130ms
4K@60Hz: 150~220ms
HDMI output
LPCM 2.0
IR receiving range
≤ 5m
IR frequency
20kHz~60kHz
Power Supply
AC 100~240V
Power Consumption
TX ≤ 5W,RX ≤ 5W
Working temperature
- 20℃~60℃
Storage temperature
- 30℃~70℃
Humidity
0~90%RH (no condensation)
Housing
Fireproof engineering plastics
Color
Black
Dimensions
87.4(L)*67.4(W)*74.2(H)mm
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
