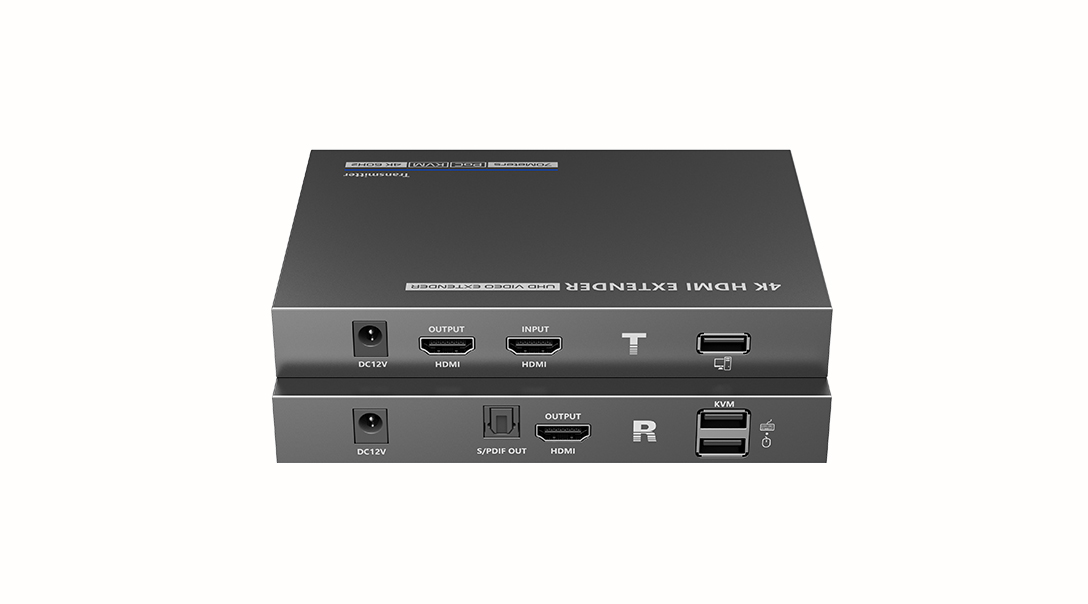

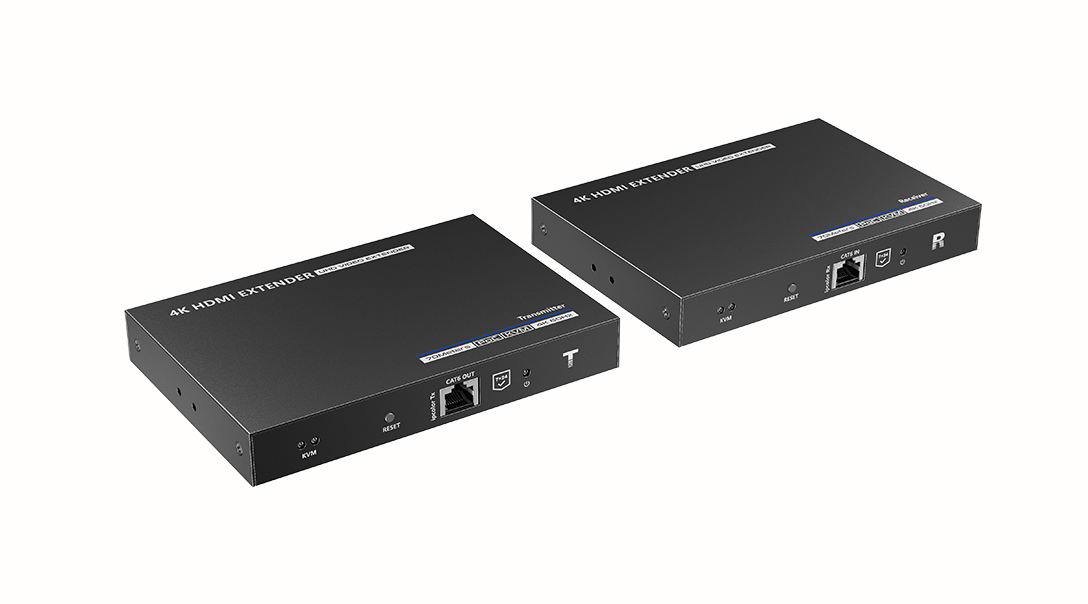

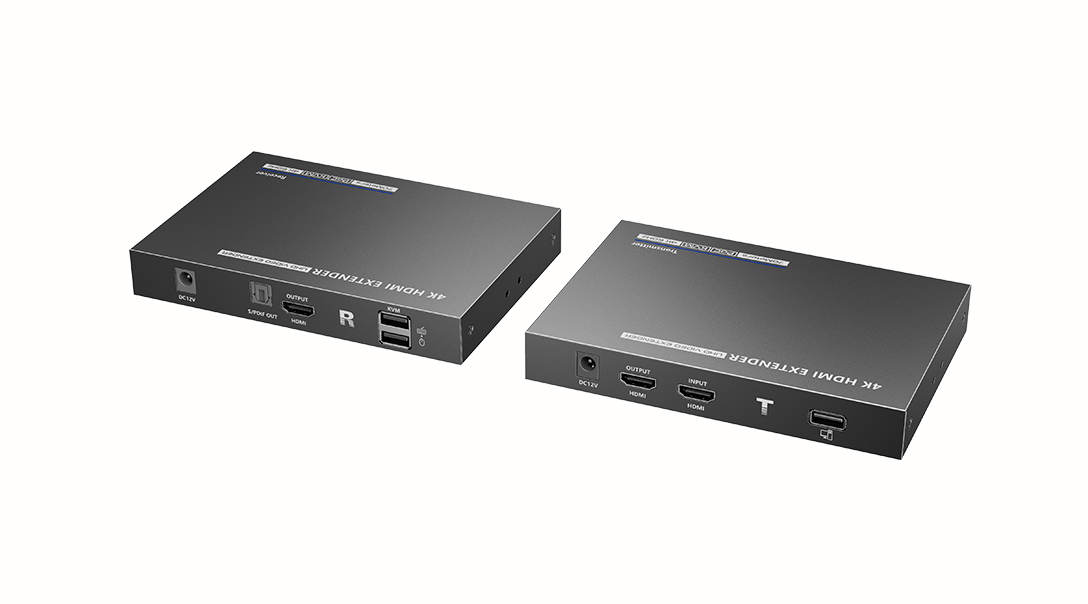

LKV676KVM-PI

Point-to-Point KVM HDMI Extender 4K@60Hz

1. Zero latency.
2. 4K@60Hz HDMI signal can be transmitted 70 meters through a CAT6/6A/7 network cable.
3. The receiver can extract the digital audio from the transmitter through the S/PDIF port.
4. Supports HDR10.
5. Supports EDID passthrough, Auto downscaling.
6. Transmitter support one HDMI loop-out.
7. Support KVM function.
8. Lighting protection, surge protection, ESD protection.
9. Support PoC, only the transmitter is required to supply power.

Introduction

Parameters

Downloads


Voltage/Current

DC12V/1A

Power consumption

TX＜4W RX＜4W

HDMI compliance

HDMI 2.0

HDCP compliance

HDCP 2.2

HDMI resolution

480i@60Hz、480p@60Hz、576i@50Hz、 576p@50Hz、 720p@50/60Hz、 1080i@50/60Hz、1080p@50/60Hz、 3840x2160@24/25/30/50/60Hz、 4096x2160@24/25Hz、1280x960、 1280x800、1280x768、1680x1050、 1360x768、1366x768、1600x900、 1024x768、800x600

Supports audio formats

LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH/Dolby Atmos

Input and output TMDS signal

0.7~1.2Vp-p(TMDS)

Input and output DDC signal

5Vp-p（TTL）

Input cable length

≤8m（AWG24）

Output cable length

≤8m（AWG24）

CAT6/6A/7

≤70m

Electrostatic protection of the whole machine

1a Contact discharge level 2 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2

Working temperature

-20~60℃

Storage temperature

-30~70℃

Humidity (no condensation)

0～90%RH

Dimension

153.0(L) x 105.5(W) x 22.0(H) mm

Material

Iron

Color

Black

Weight

TX: 348.0g RX: 348.0g

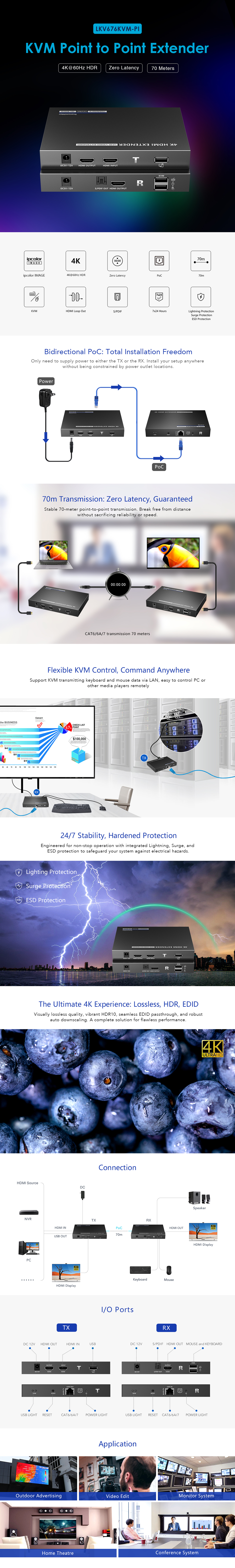

Promotional Material
