    iMMS-Controller-IR

    IR Controller

    · Features
    1. Adopts ipcolor STREAM technology for low-latency transmission.
    2. Works with CAT 5/5e/6 and higher cables; 120 m reach on CAT 6 or above.
    3. Supports IR learning and control device by APP.
    4. Firmware upgrading via Micro USB port.
    5. Lightning protection, surge protection, ESD protection.
    6. Supports stable 24/7 operation.
    Introduction
    Parameters
    Downloads

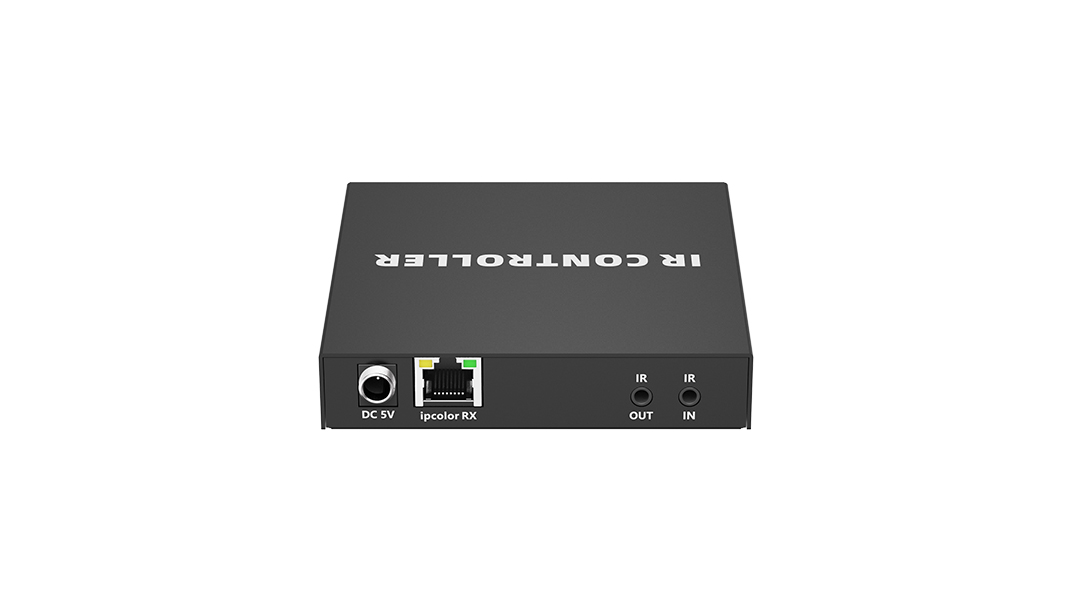

    Input interface
    1x 3.5mm IR output
    1x 3.5mm IR input
    Output interface
    20kHz~60kHz
    Connection types
    Switch or switch cascade connection(A router is essential)
    Transmission distance
    CAT5 80m/CAT5E 100m/CAT6 120m
    Power Supply
    DC 5V/2A
    Power Consumption
    ≤ 2W
    Working temperature
    - 20℃~60℃
    Storage temperature
    - 30℃~70℃
    Humidity
    0~90%RH (no condensation）
    Housing
    lron
    Weight
    278g
    Color
    Black
    Dimensions
    106.0(L)*103.0(W)*20.6(H)mm
    Protection
    ESD protection
    1a Contact discharge level 2 (±4KV)
    1b Air discharge level 3 (±8KV)
    Implementation of the standard: IEC61000-4-2
    Lightning protection, Surge protection
    Promotional Material
    Video Material
    Product Manual
    Product specification
