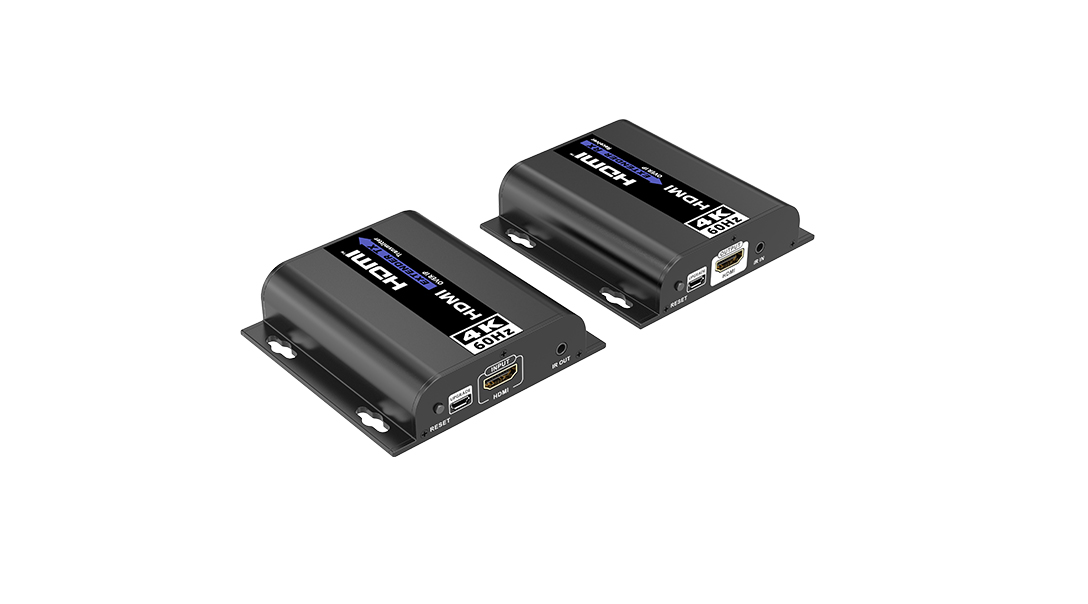

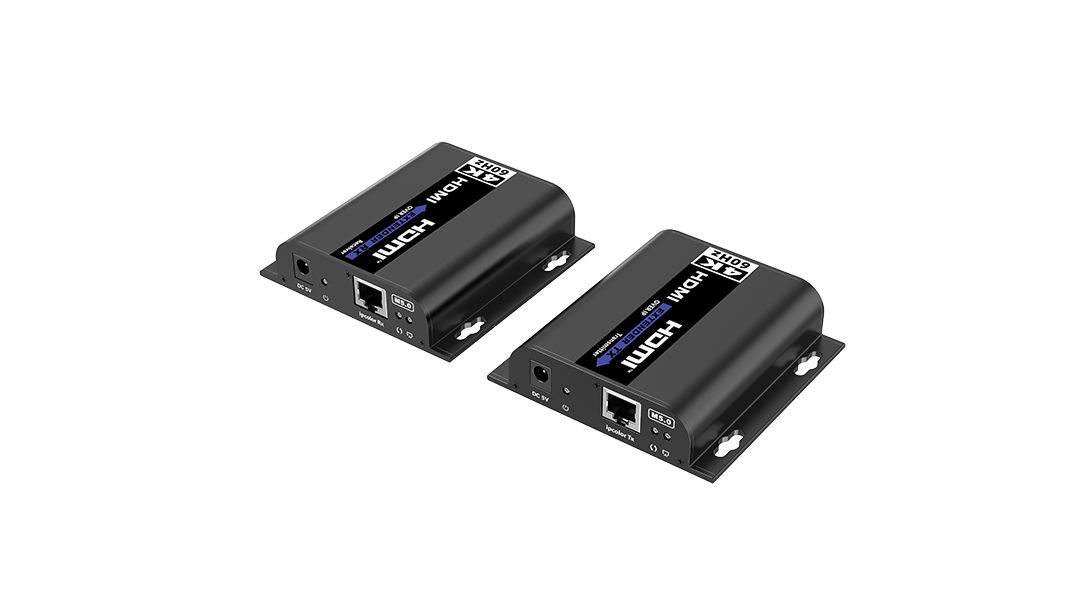

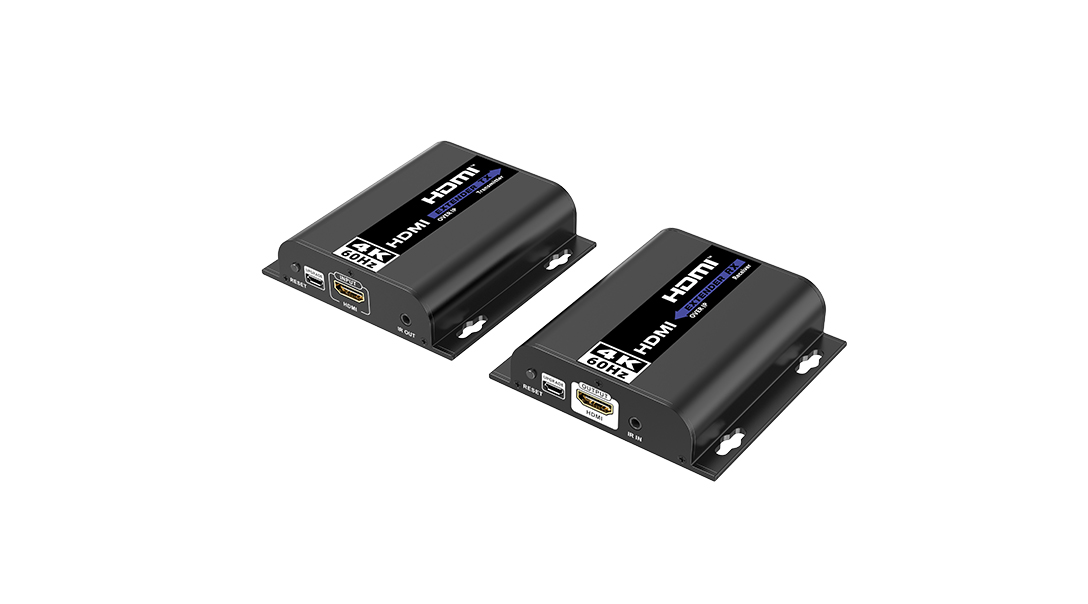

LKV483-M5.0

4K 60Hz HDMI over IP Extender

1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 4096 x 2160@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one ,one-to-many, many-to-one and many-to-many connection through the gigabit switch.
5. Supports IR pass-back(20～60KHz).
6. Supports 256 signal source inputs and 256 signal outputs.
7. Signal sources can be switched via the APP for flexible many-to-many matrix configuration.
8. Firmware upgrading via Micro USB port.
9. Lightning protection, surge protection, ESD protection.
10. Supports stable 24/7 operation.

Introduction

Parameters

Downloads

HDMI length

≤ 5m

Maximum transfer rate

18Gbps

Compatibility

HDMI 2.0，HDCP 1.4/HDCP 2.2

Resolutions

4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600

Connection types

One-to-one connection One-to-many connection Many-to-one connection Many-to-many connection Switch cascading

Transmission distance

CAT5 80m / CAT5E 100m / CAT6 120m

Transmission latency

1080P: 80~130ms
4K@60Hz: 150~220ms

HDMI output

LPCM 2.0

IR receiving range

≤ 5m

IR frequency

20kHz~60kHz

Power Supply

DC 5V/1A

Power Consumption

TX ≤ 3.5W，RX ≤ 2.5W

Working temperature

- 20℃~60℃

Storage temperature

- 30℃~70℃

Humidity

0~90%RH (no condensation）

Housing

Aluminium

Weight

TX：156g，RX：154g

Color

Black

Dimensions

96.8(L)*94(W)*23.7(H)mm

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
