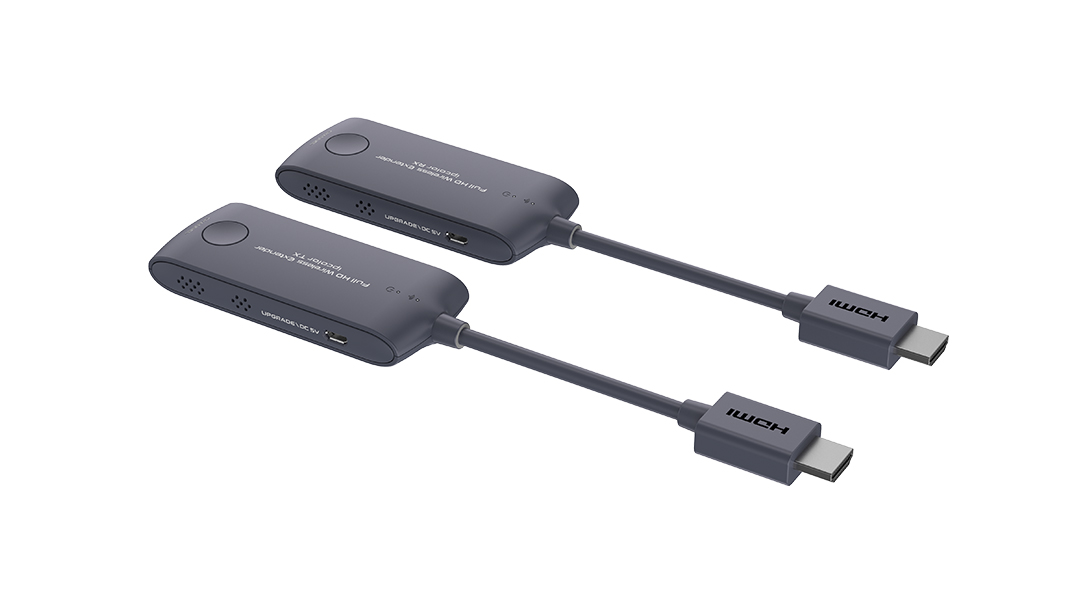

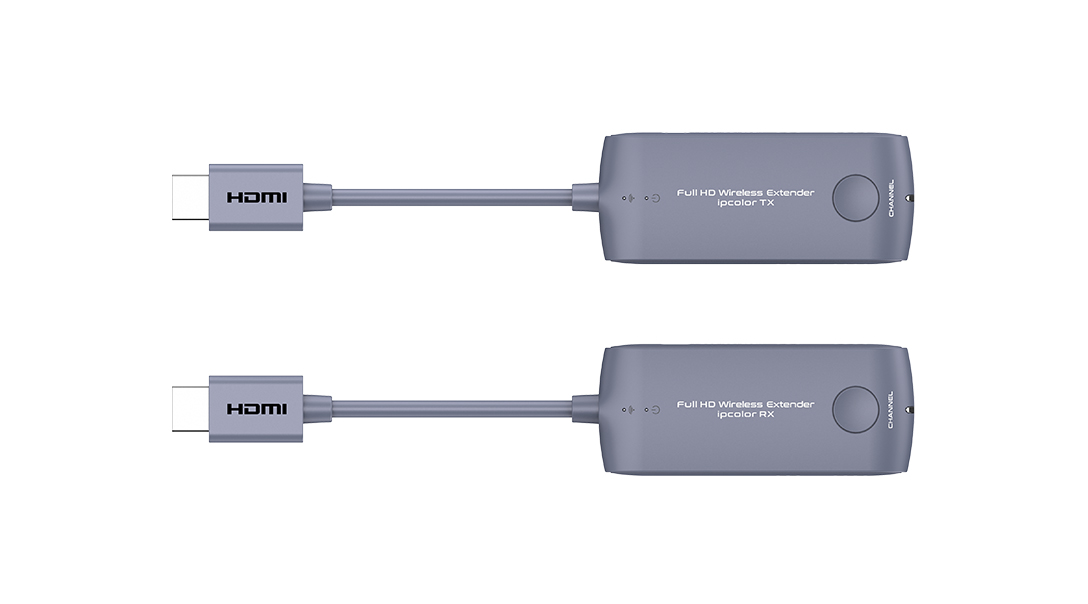

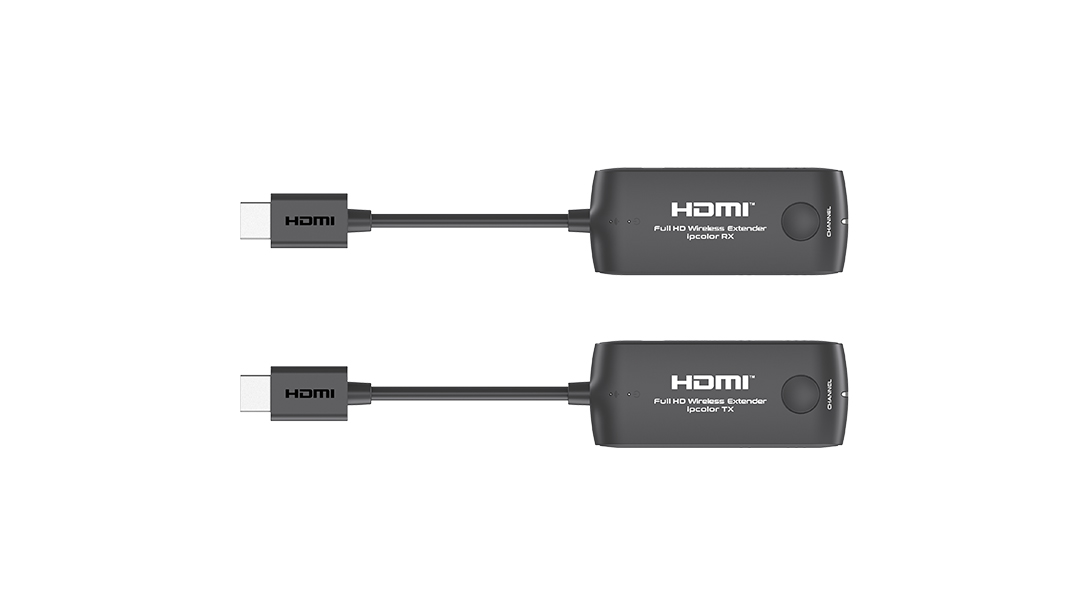

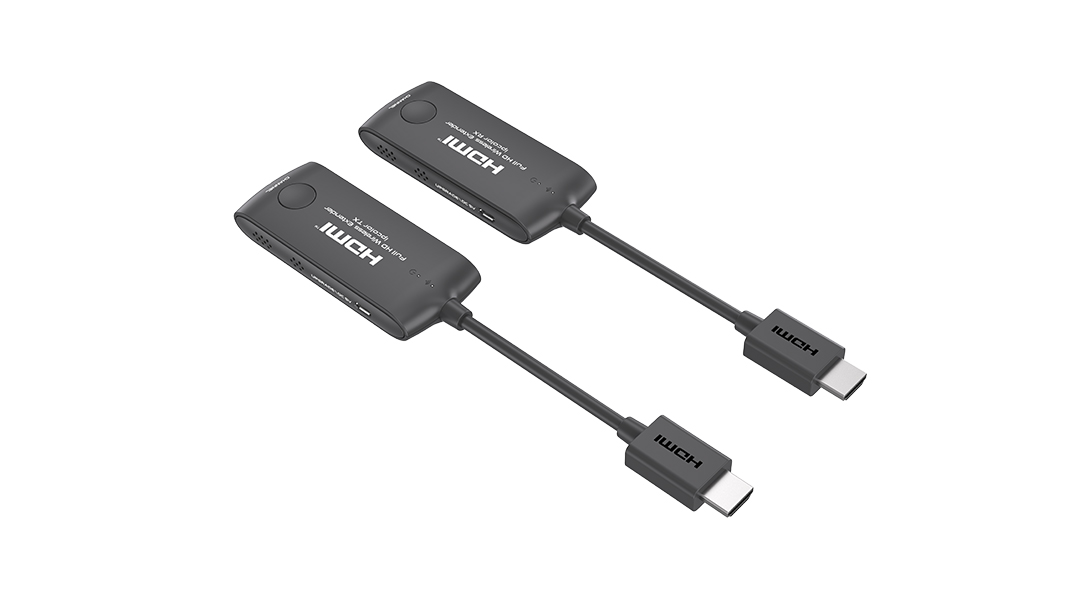

LKV455Mini-V2.0

Full HD HDMI Wireless Extender

· Features
1. Adopting ipcolor STREAM technology can realize high definition and low-latency transmission.
2. Support up to 1920x1200@60Hz/1920x1080@60Hz resolution, backward compatible.
3. Supports up to 16-to-1 wireless transmission, and the transmission distance up to 20 meters (line of sight).
4. In case of multiple sets of products in the same area, support SSID pairing and channel switching to avoid interference.
5. Support 5G wireless frequency bands, strong anti-interference.
6. Support firmware upgrade via Micro USB port.
7. Portable design, plug and play.
8. Supports stable 24/7 operation.
Introduction
Parameters
Downloads


Voltage/Current
Micro USB power supply (5V/1A)
Power consumption
TX < 4.5W, RX < 3.5W
HDMI version
HDMI 1.3
HDCP version
HDCP 1.4
Resolution supported
1080P@50/60Hz, 720P@50/60Hz, 1920x1200@60Hz
Input and output TMDS signal
0.7~1.2Vp-p(TMDS)
Input and output DDC signal
5Vp-p(TTL)
Wi-Fi Frequency bands
5.18-5.24 GHz
Transmission distance
≤ 20m
Latency
80~170ms
Connection types
Up to 16-to-1
SSID pairing
Supported
ESD protection
1a Contact discharge level 3
1b Air discharge level 3
Standard: IEC61000-4-2
Working temperature
-20~50℃
Storage temperature
-30~70℃
Humidity (no condensation)
0~90% RH
Dimension
TX: 40.2(W) * 230(L) * 15.0(H)mm
RX: 40.2(W) * 230(L) * 15.0(H)mm
Color
Grey
Material
ABS
Net weight
TX: 58g; RX: 54g
