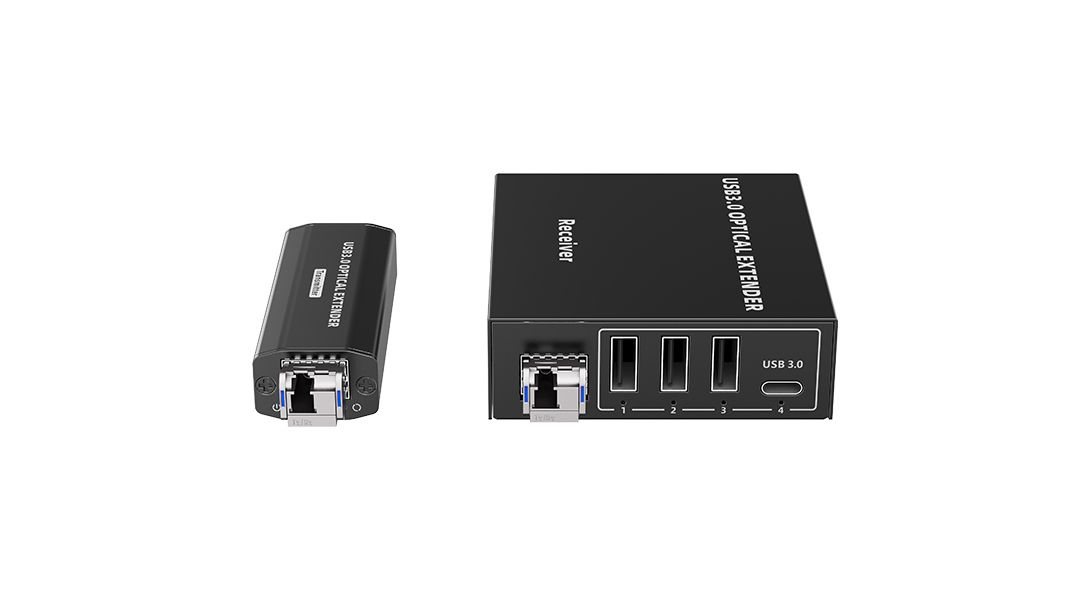

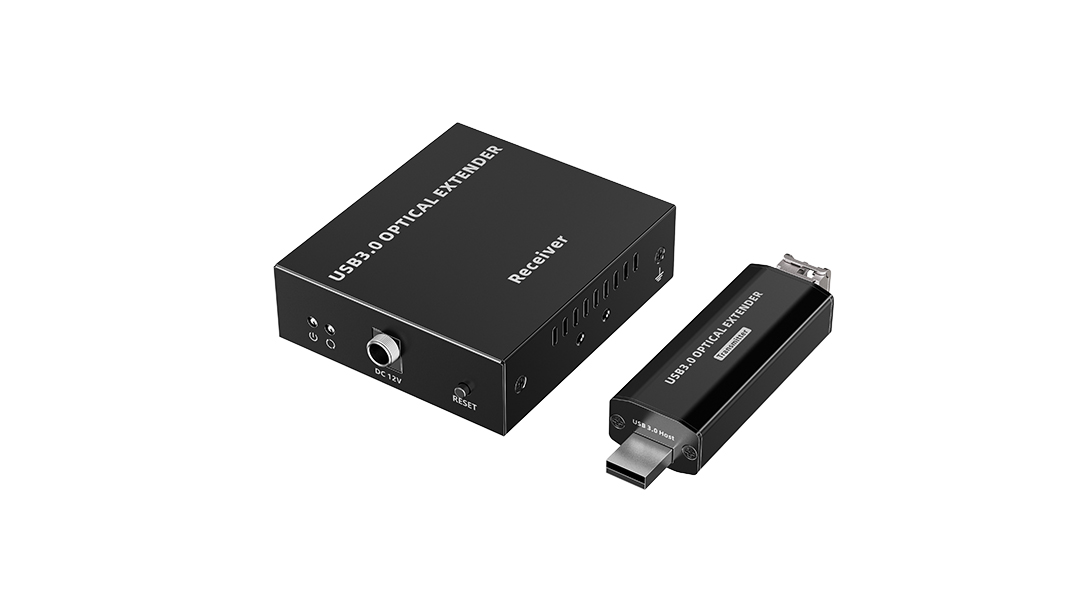

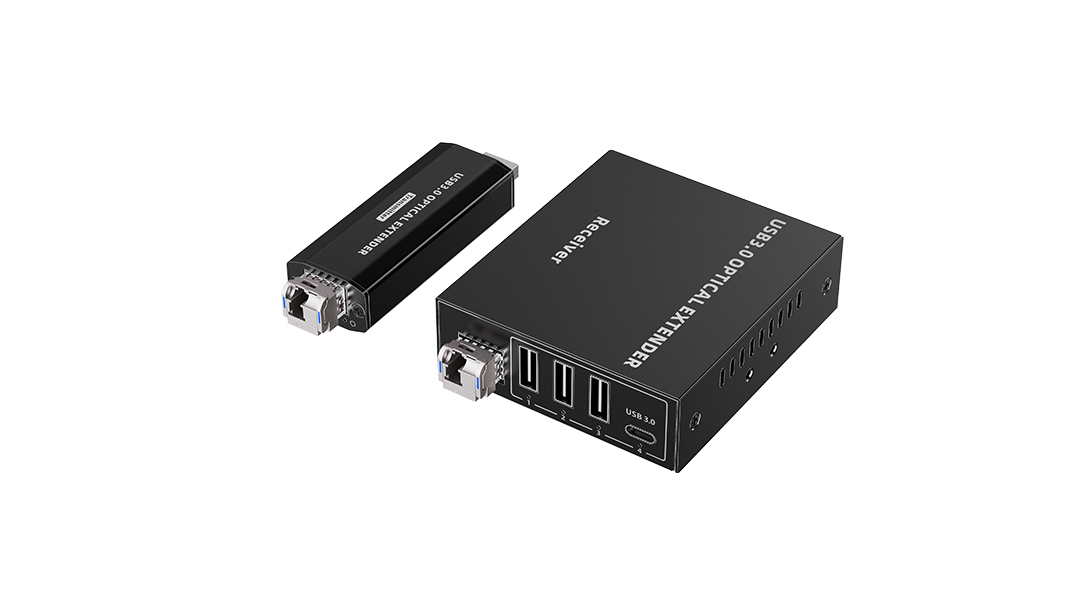

LKV322USB-SMF-V2.0

USB3.0 20KM Single-mode Optical Extender

Features
1. The Transmitter supports USB 3.0 Super-Speed, compatible with USB 3.2 Gen1, USB 3.1 Gen1; The Receiver supports USB 3.0 Super-Speed, USB 2.0 High-Speed, compatible with USB 1.1 Full-Speed.
2. Supports four USB 3.0 input and one USB 3.0 outputs.
3. Transmission distance of USB 3.0 signals up to 20 kilometers through LC single-mode optical fiber.
4. Supports USB hub connection.
5. The transmitter is powered by the source device directly, no additional power supply is required.
6. Supports hot-plugging of USB devices.
7. Lightning protection, surge protection, ESD protection.
8. Supports stable 24/7 operation.

Introduction

Parameters

Downloads

Transmitter USB

USB 3.0, compatible with USB 3.2 Gen1, USB 3.1 Gen1 (Only connect to USB 3.0 interface)

Receiver USB

USB 3.0, compatible with USB 3.2 Gen1, USB 3.1 Gen1, USB 2.0, USB 1.1

Maximum transfer rate

5Gbps

Transmission Distance

Single-mode optical fiber 20 KM

USB Device

Support printer, camera, scanner, USB flash drive, keyboard, mouse, touch screen... etc

USB Hot-Plug

Support

USB Port

3 USB-A 3.0 input and 1 Type C 3.0 input
1 USB-A 3.0 output

Housing

Tx: Aluminium; Rx: Iron

Dimensions

Tx: 84.5(L) x 27.5(W) x 17(H) mm;
Rx: 85.0(L) x 76.0(W) x 25.0(H) mm

Weight

Tx:37g ，Rx:175g

Color

Black

Power Supply

TX：powered by the source device
RX：DC 12V/2A

Power Consumption

TX ≤ 2W ，RX ≤ 3W

Working Temperature

-20～60℃

Storage Temperature

-30～70℃

Humidity

0～90%（No condensation）

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
