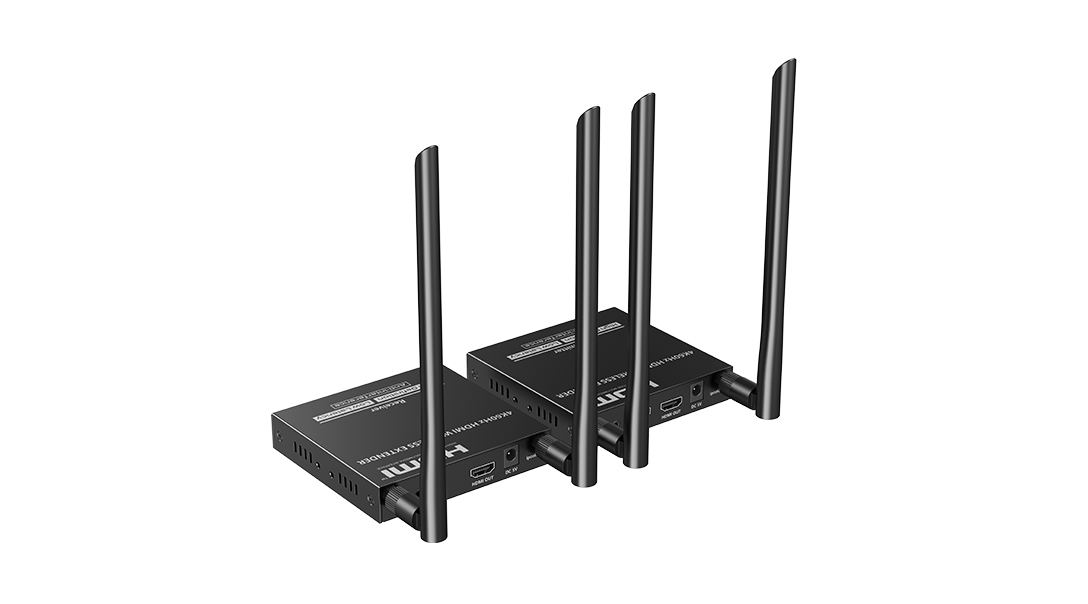

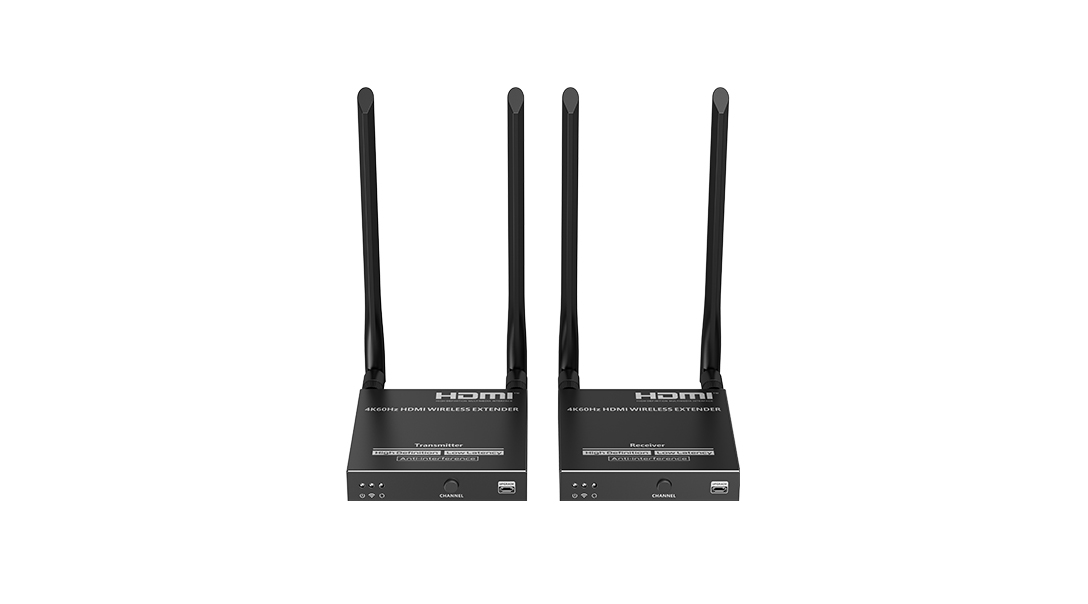

LKV699E

4K60Hz HDMI Wireless Extender

Features
1. Adopting ipcolor STREAM technology can realize high definition and low-latency transmission.
2. Supports up to 4096x2160@60Hz resolution, backward compatible.
3. Supports up to 1-to-4 wireless transmission, and the transmission distance up to 50 meters (line of sight, 1-to-1).
4. The transmitter supports HDMI loop out.
5. In case of multiple sets of products in the same area, support SSID pairing and channel switching to avoid interference.
6. Supports IR passback.
7. Supports 5G wireless frequency bands, strong anti-interference.
8. Supports firmware upgrade via Micro USB port.
9. Supports stable 24/7 operation.

Introduction

Parameters

Downloads

Voltage/Current

DC 5V/2A

Power consumption

TX ≤ 5W, RX ≤ 4W

HDMI version

HDMI 2.0

HDCP version

HDCP 1.4/HDCP 2.2

Maximum transfer rate

18Gbps

Resolution supported

4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@50/60Hz, 720P@50/60Hz, 1920x1200, 2560x1440

Input and output TMDS signal

0.7~1.2Vp-p（TMDS）

Input and output DDC signal

5Vp-p（TTL）

Wi-Fi Frequency bands

5.18~5.24 GHz

Transmission distance

One-to-one ≤ 50m;
One-to-two ≤ 30m;
One-to-three ≤ 20m;
One-to-four ≤ 15m

Latency

4K@60Hz: 130~220ms ,
1080P@60Hz: 70~120ms For reference only, delays may vary depending on the resolution, transmission distance, and connection capacity

Connection types

One-to-one
One-to-two
One-to-three
One-to-four

SSID pairing

Supported

ESD protection

1a Contact discharge level 3
1b Air discharge level 3
Standard: IEC61000-4-2
Lightning protection, Surge protection

Infrared frequency

20~60kHz

Receiving range

≤ 5m

Working temperature

-20~60℃

Storage temperature

-30~70℃

Humidity (no condensation)

0~90% RH

Dimension

TX: 106(W) x 103(L) x 20.6(H) mm
RX: 106(W) x 103(L) x 20.6(H) mm

Color

Black

Material

Iron

Net weight

TX: 299g；RX: 299g
