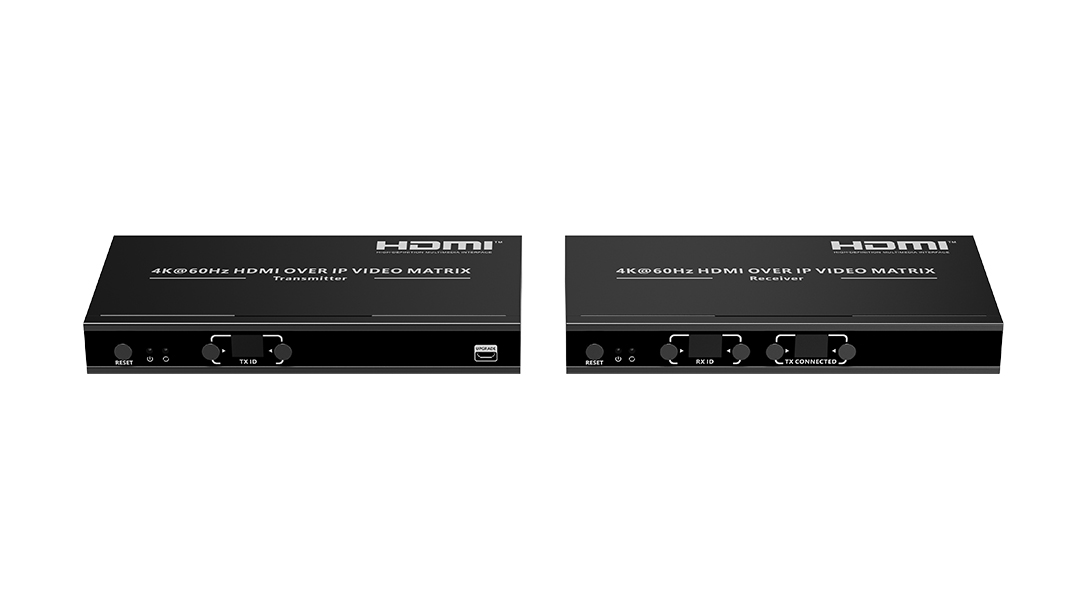

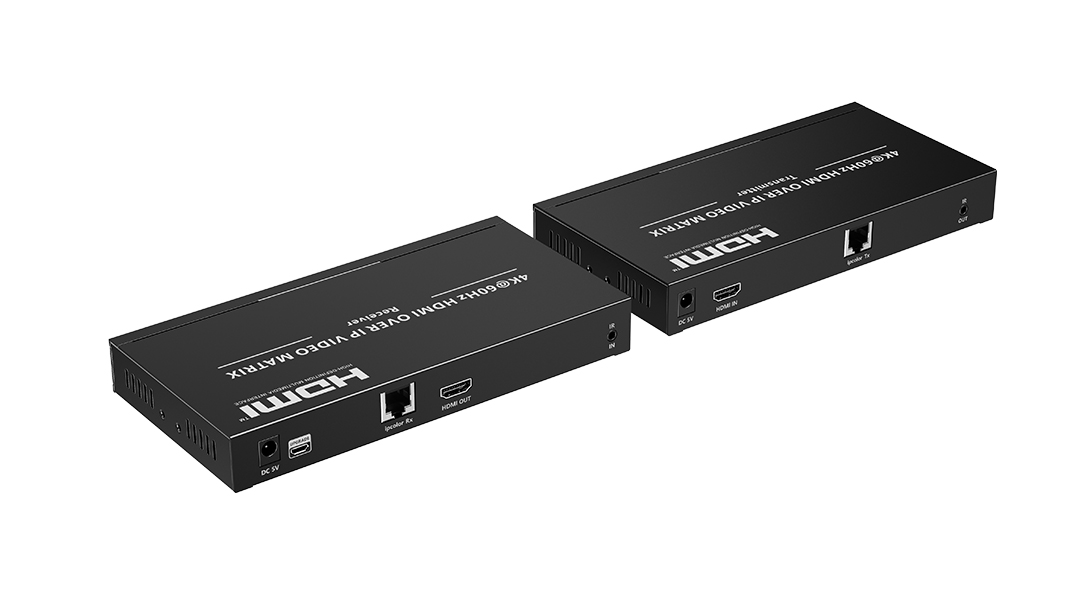

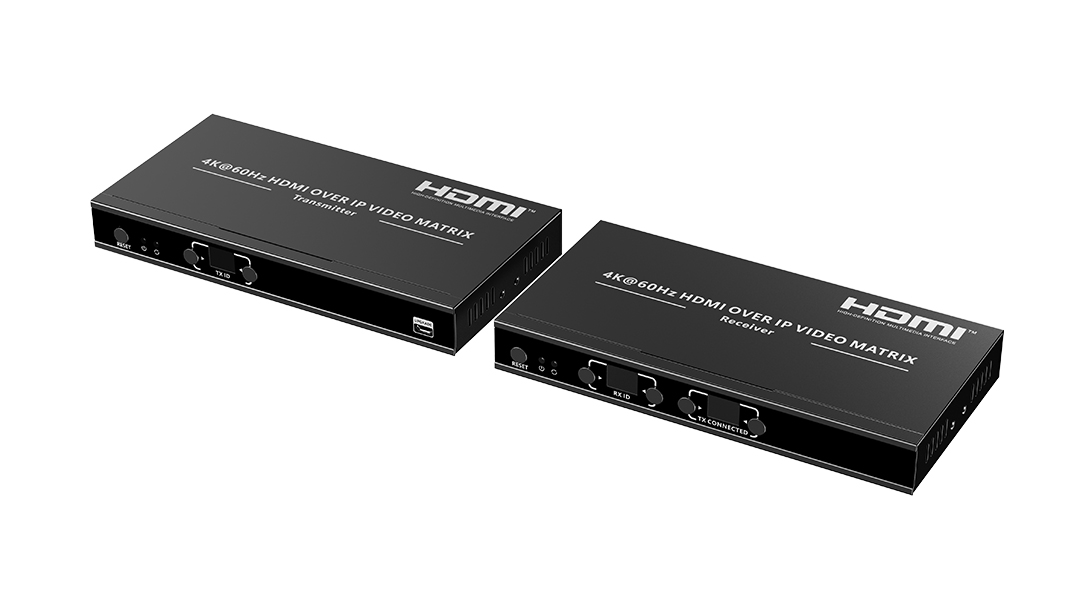

iMCS-IM02M
4K@60Hz HDMI™ over IP Matrix
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 3840 x 2160@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one or many-to-many connections through the gigabit switch.
5. Supports IR pass-back(20～60KHz);
6. Creating multi-screen splicing with up to 5x5 (also include 1x1/1x2/ 1x3/1x4/1x5/2x1/2x2/2x3/2x4/2x5/3x1/3x2/3x3/3x4/3x5/4x1/4x2/ 4x3/4x4/4x5/5x1/5x2/5x3/5x4/5x5) video wall through switch and controlled by APP.
7. Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration (Require APP control operation while connecting more than 100 TX-to-RXs).
8. Firmware upgrading via Micro USB port.
9. Lightning protection, surge protection, ESD protection.
10. Supports stable 24/7 operation.
