LKV433Mini

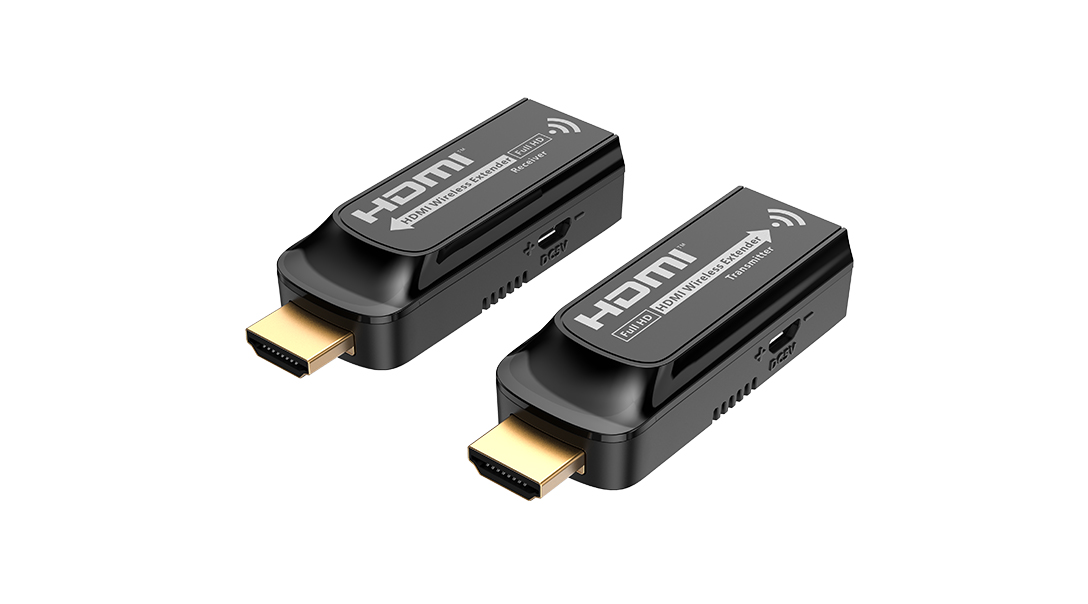

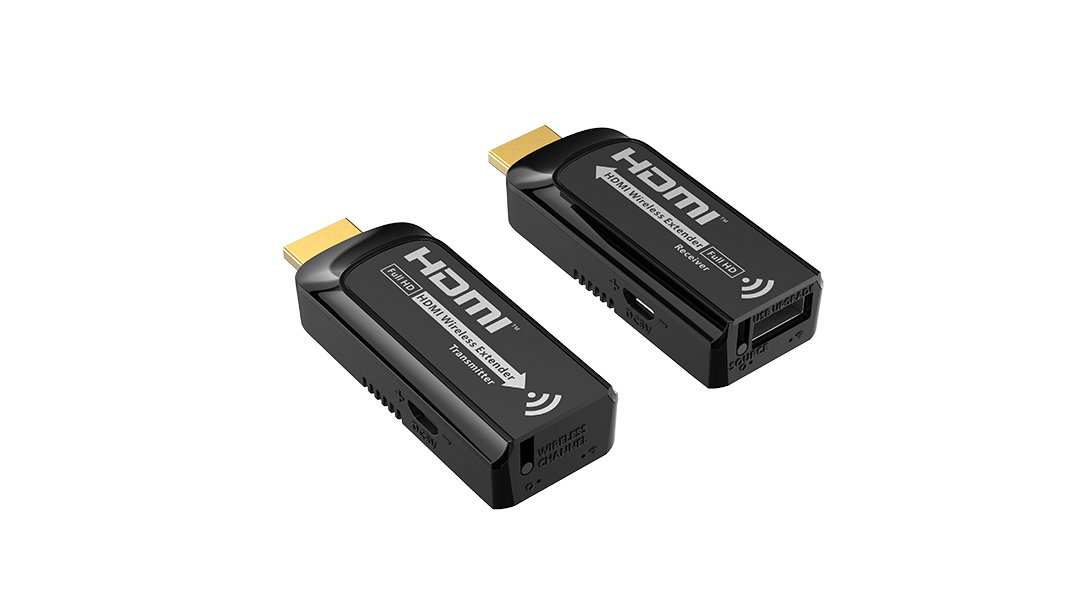

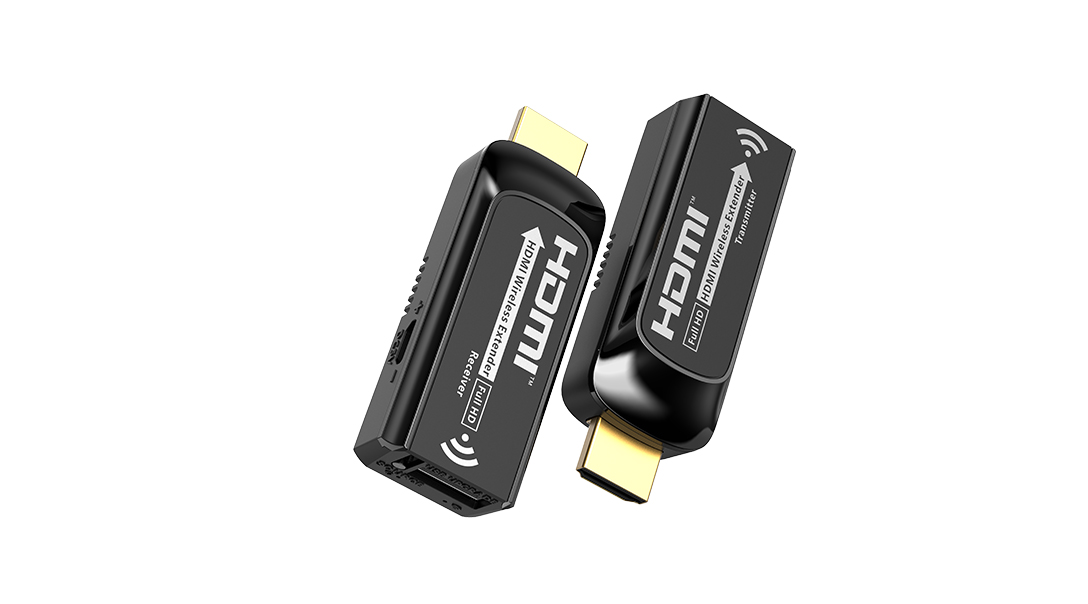

Full HD HDMI Wireless Extender

1. High definition and low-latency transmission.
2. Supports up to 1920x1200@60Hz resolution, backwards compatible.
3. Supports wireless transmission up to 20 meters (line of sight).
4. In case of multiple sets of products in the same area, supports SSID pairing and channel switching to avoid interference.
5. Supports 5G wireless frequency bands, anti-interference.
6. Supports firmware upgrade via Micro USB port.
7. Portable design, plug and play.
8. Supports stable 24/7 operation.
Introduction
Parameters
Downloads


Voltage/Current
Micro USB power supply (5V/1A)
Power consumption
TX < 4.5W, RX < 4.5W
HDMI version
HDMI 1.3
HDCP version
HDCP 1.4
Resolution supported
1080P@50/60Hz, 720P@50/60Hz, 1920x1200@60Hz
Input and output TMDS signal
0.7~1.2Vp-p(TMDS)
Input and output DDC signal
5Vp-p(TTL)
Wi-Fi Frequency bands
5.18-5.24 GHz
Transmission distance
≤ 20m
Latency
80~170ms
Connection types
One to one
SSID pairing
Supported
ESD protection
1a Contact discharge level 3
1b Air discharge level 3
Standard: IEC61000-4-2
Working temperature
-20~50℃
Storage temperature
-30~70℃
Humidity (no condensation)
0~90% RH
Dimension
TX: 71.4 (L) x 26.0 (W) x 11.1 (H) mm
Color
Black
Material
ABS
Net weight
TX: 18g; RX: 20g
