LKV401MV-V2.0

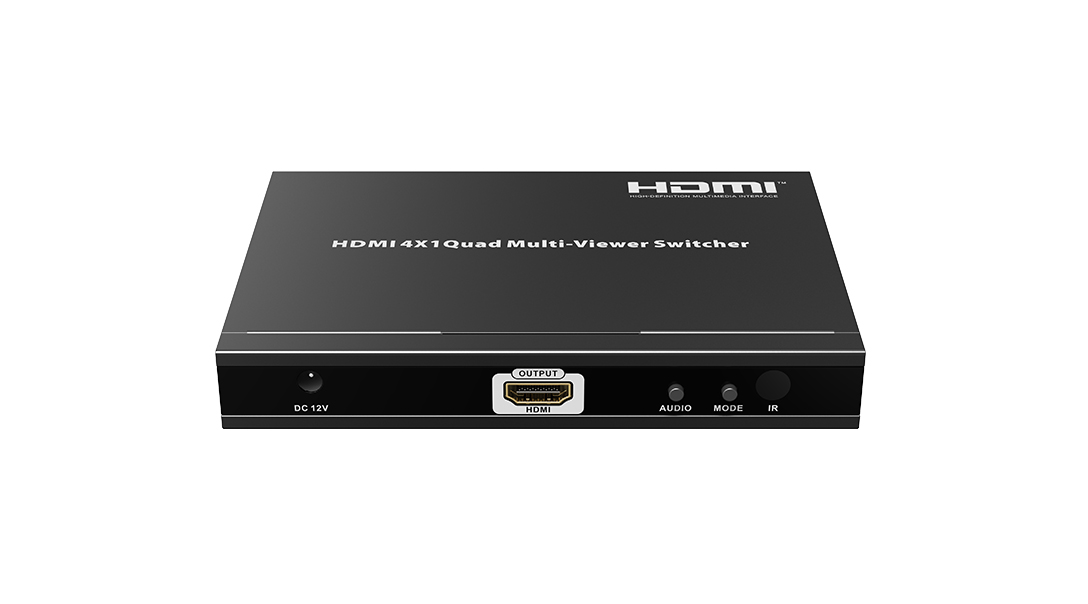

HDMI 4x1 Quad Multiviewer Switcher

This is a HDMI 4x1 Quad Multiviewer Switcher, with 4 HDMI inputs, and 1 HDMI output, displays video from four HDMI source devices simultaneously on a single monitor. Switch to and control any of the four source devices while monitoring the other three connections in real time. It supports quad mode, full screen mode and dual mode. HDMI signal resolution supported is up to 1920x1200@60Hz. It is widely used in many applications that require real-time monitoring of multiple devices, like DVD player, cameras and computers. It is the perfect solution for the applications need to monitor several sources at the same time.

Introduction

Parameters

Downloads

Input interface

4x HDMI

Output interface

1x HDMI

HDMI length

≤ 5m

Compatibility

HDMI1.3，HDCP1.4

Audio support

LPCM 2.0

Support mode

Support quad mode, full screen mode and dual mode

Support Resolutions

Input: 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 1920x1200@60Hz, 1680x1050@60Hz, 1600x1200@60Hz, 1600x900@60Hz, 1440x900@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1280x960@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1024x768@60Hz, 800x600@60Hz, 576P@50Hz, 480P@60Hz, 640x480@60Hz

Support Resolutions

Output: 720P@60Hz, 1080P@60Hz

Control mode

IR/Button

Power Supply

DC12V/1A

Power Consumption

< 7W

Working Temperature

- 20℃~60℃

Storage Temperature

- 30℃~70℃

Humidity

0~90%RH (no condensation）

Housing

lron

Weight

340g

Color

Black

Dimensions

178.50×104.74×21.20mm

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
