LKV676A

4K@60Hz HDMI™ Extender 90M

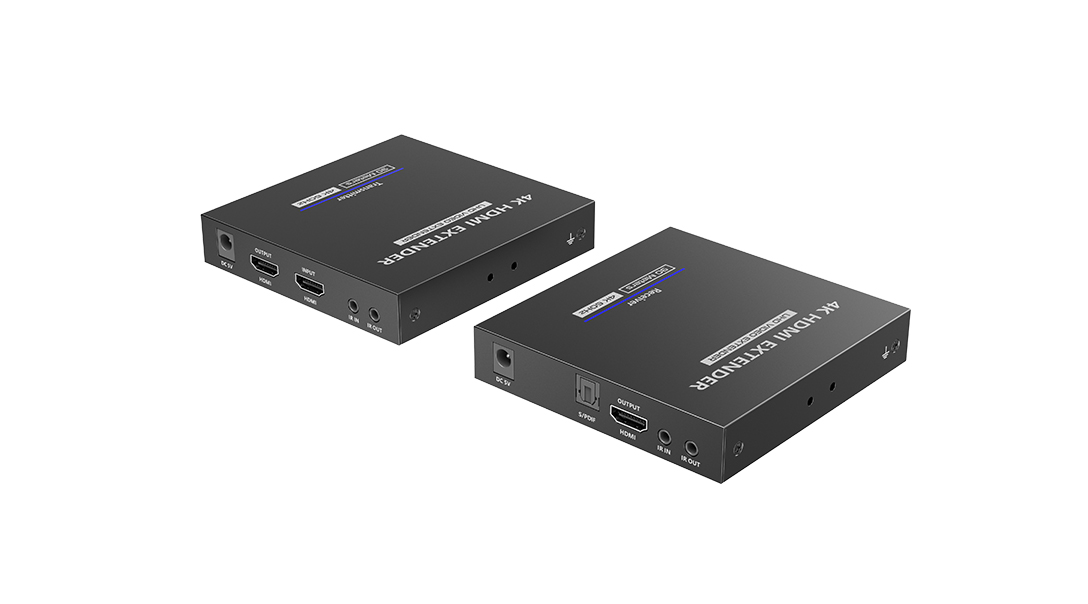

This HDMI™ Extender includes a transmitter unit and a receiver unit, allows HDMI™ signal to be transmitted up to 90 meters at 4K resolution using a CAT6/6A/7 network cable. It is perfect for outdoor advertising, video clips, monitor system, home entertainment, and conference, etc.

Introduction

Parameters

Downloads


Power Supply

DC5V/1A

Power Consumption

TX：4W，RX：4W

HDMI Compliance

HDMI2.0，HDMI2.2

HDMI resolution

576p@50Hz、720p@50/60Hz、 1080i@50/60Hz、1080p@50/60Hz、 3840x2160@24/25/30/50/60Hz 4096x2160@24/25Hz、3440x1440、 2560x1440、 2560x1080、2048x1080、 1920x1440、1280x960、1280x800、 1280x768、1680x1050、1360x768、 1366x768

Supports Audio Formats

LPCM/DTS-H D/DTS-Audi／ Dolby Digital 5.1CH／Dolby Atmos

Input and output TMDS signal

0.7~1.2Vp-p（TMDS）

Input and output DDC signal

5Vp-p（TTL）

Input cable length

≦8m（AWG24）

Output cable length

≦8m（AWG24）

CAT6/6A/7 Transmission Distance

4K@60Hz transmission 90m
1080p@60Hz transmission 120m

Protection Level

1a Contact discharge level 3
1b Air discharge level 3 Implementation of the standard: IEC61000-4-2

Working temperature

-20~60℃

Storage temperature

-30~70℃

Humidity (no condensation)

0～90%RH

Dimension

105.5(L) x 102.5(W) x 20(H)mm

Material

Iron

Color

Black

Weight

TX: 243g，RX: 243g
