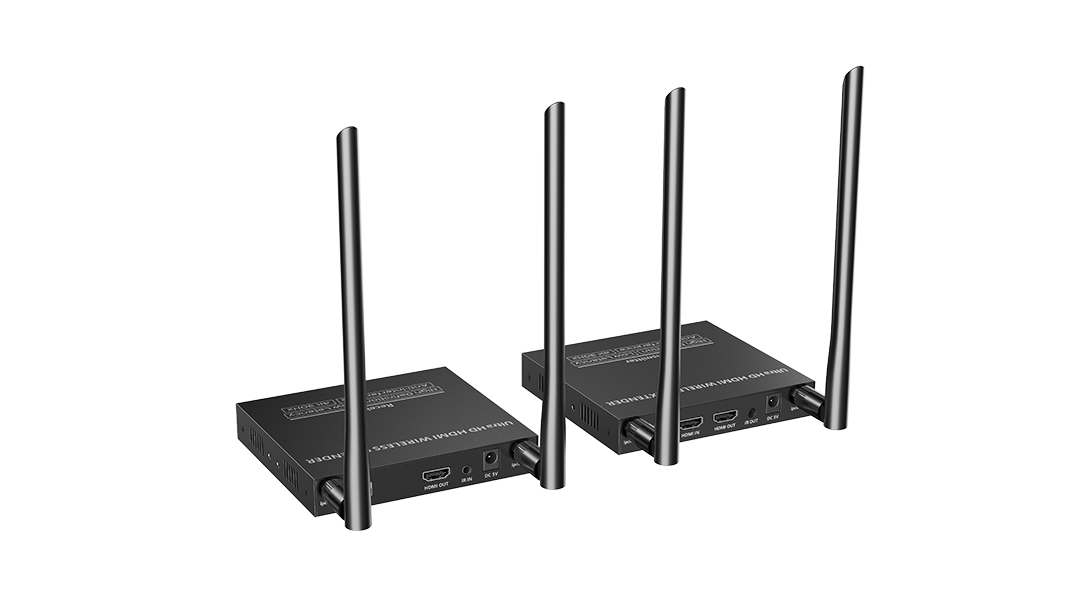

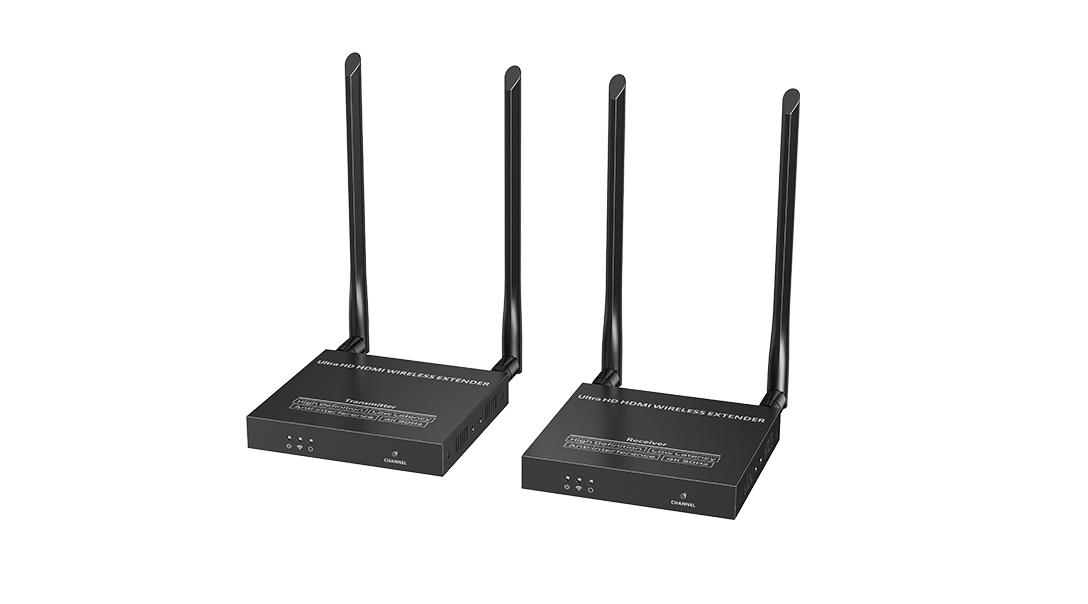

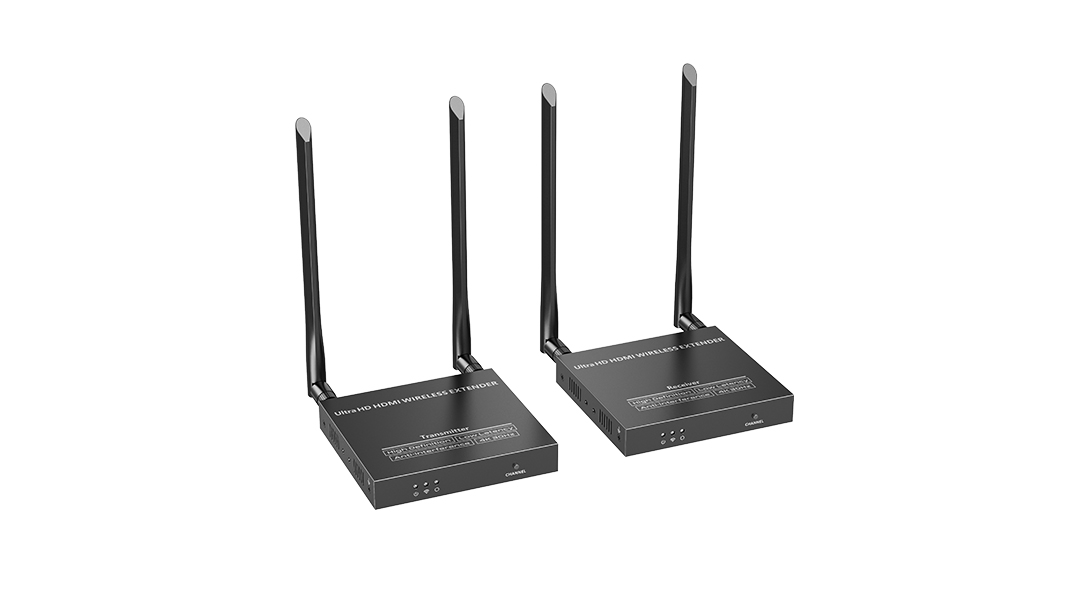

LKV677

4K@30Hz Wireless HDMI™ Extender

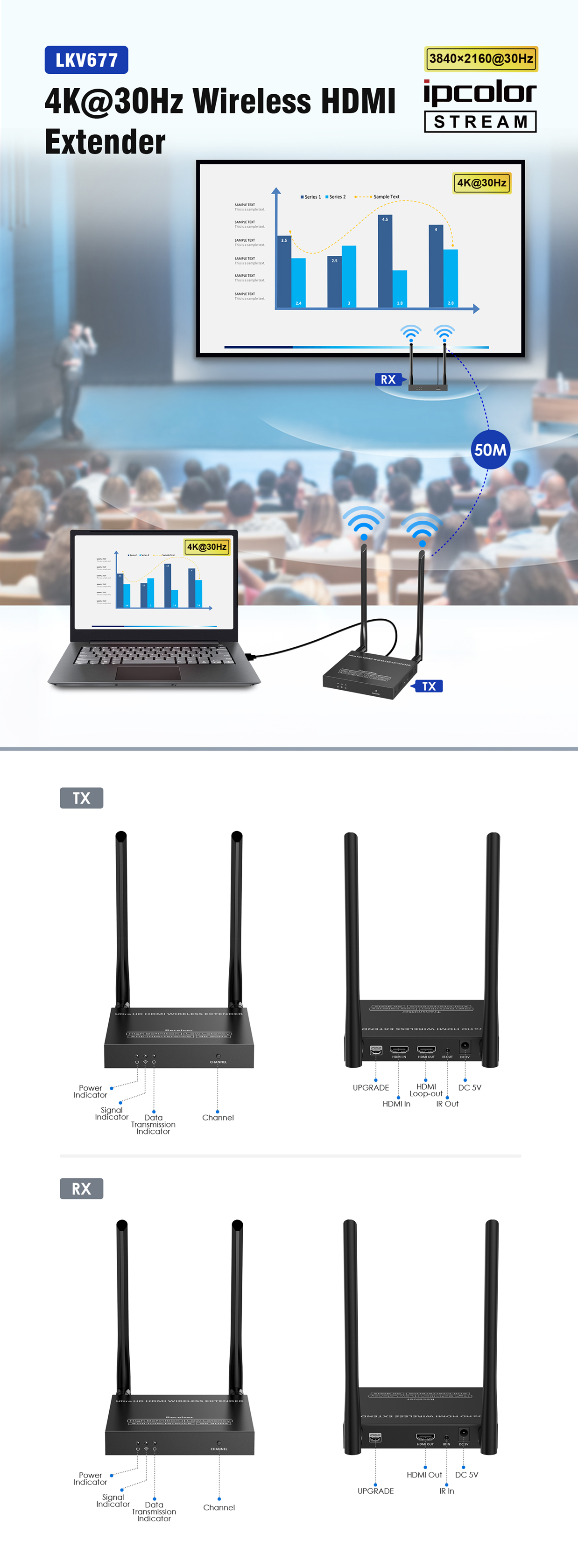

This is a 4K@30Hz HDMI™ wireless extender, including a transmitter and a receiver. Adopting ipcolor STREAM technology can realize high definition and low-latency transmission. Based on the 5G wireless frequency band, with stable anti-interference and safety performance. It supports 1-to-1 wireless transmission, and the transmission distance can reach 50 meters, effectively solving problems caused by complicated wiring. It's an ideal wireless video transmission solution for video conferences, home entertainment, multimedia education, etc.

Introduction

Parameters

Downloads


Voltage/Current

DC 5V/2A

Power consumption

TX ≤ 6W, RX ≤ 4W

HDMI version

HDMI 1.4

HDCP version

HDCP 1.4

Maximum transfer rate

10.2Gbps

Resolution supported

4096x2160@30Hz, 3840x2160@24/30Hz, 1080P@50/60Hz, 720P@50/60Hz, 1920x1200, 2560x1440, 2560x1600

Input and output TMDS signal

0.7~1.2Vp-p（TMDS）

Input and output DDC signal

5Vp-p（TTL）

Wi-Fi Frequency bands

5.18~5.24 GHz

Transmission distance

≤ 50m

Latency

80~175ms

Connection types

One-to-one

SSID pairing

Supported

ESD protection

1a Contact discharge level 3
1b Air discharge level 3
Standard: IEC61000-4-2

Infrared frequency

20~60kHz

Receiving range

≤ 5m

Working temperature

-20~60℃

Storage temperature

-30~70℃

Humidity (no condensation)

0~90% RH

Dimension

TX: 115(W) x 125(L) x 20.6(H) mm
RX: 115(W) x 125(L) x 20.6(H) mm

Color

Black

Material

Iron

Net weight

TX: 353g; RX: 346g
