LKV841

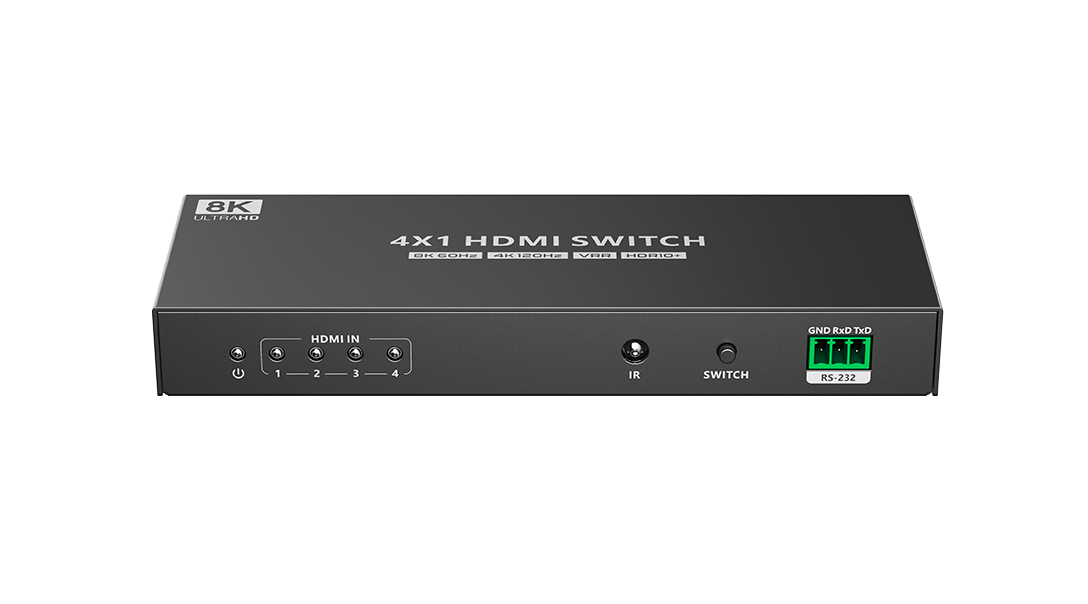

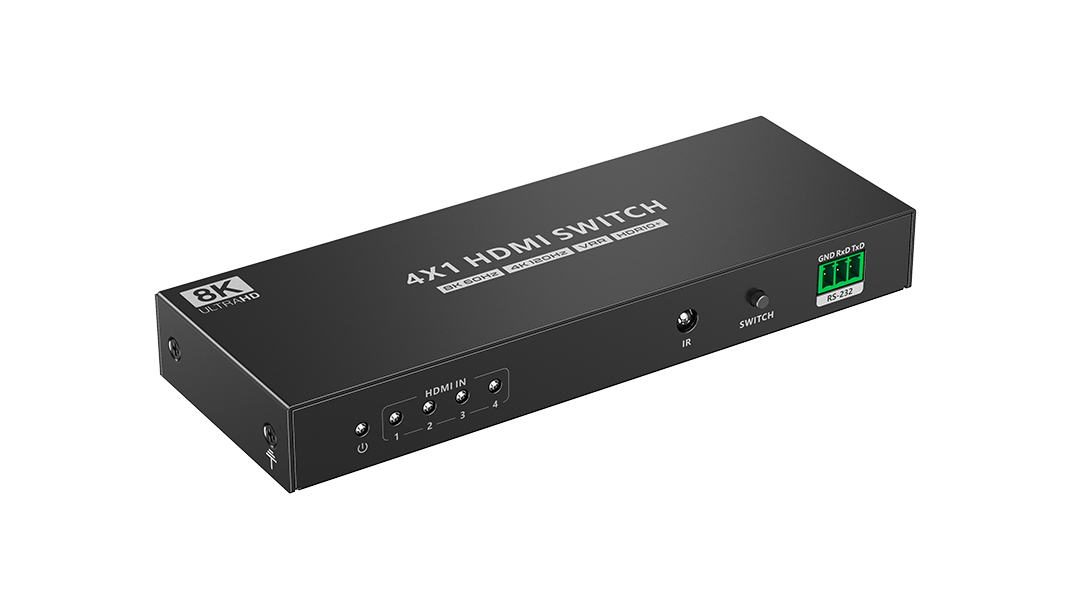

8K@60Hz 4x1 HDMI™ Switch

This is a 4-in-1-out 8K switch. It supports 4 HDMI™ signal inputs and 1 HDMI™ signal output, the highest resolution is 8K@60Hz and is backward compatible. A variety of control methods (IR remote control and RS-232 switch) can easily switch the content of the 4 HDMI™ signal sources to the display. The product is widely used in security monitoring, media entertainment, broadcasting, command centers, etc.

Introduction

Parameters

Downloads

HDMI version

Support HDMI 2.1，backward compatible
Support HDCP 2.3，backward compatible

HDMI port

HDMI input X4，HDMI output X1

Transmission speed

48Gbps

Video bandwidth

1200MHz

HDMI resolution

7680x4320@24/25/30/50/60Hz, 4096x2160@24/25/30/50/60/100/120Hz, 3840x2160@24/25/30/50/60/100/120Hz, 3440x1600@60Hz, 3440x1440@60Hz、2560x1600@60Hz, 2560x1440@60/100/120Hz, 2560x1080@60Hz, 2048x1080@60Hz, 1920x1440@60/100/120Hz, 1080p@50/60/100/120Hz, 1080i@50/60Hz, 720p@50/60Hz

S/PDIF output

Dolby Atmos, Dolby True HD, DTS:X, DTS-HD, etc.

HDMI output

Dolby Atmos, Dolby Digital 7.1CH, Dolby True HD, DTS:X, DTS-HD, LPCM 7.1CH, etc.

RS-232

3 pin (GND/RxD/TxD) , baud rate 9600

Voltage/Current

DC5V/1A

Power consumption

< 2.0W

Working temperature

-20℃~60℃

Storage temperature

-30℃~70℃

Humidity (no condensation)

0~90%RH

Housing

Iron

Color

Black

Weight

275g

Dimension

160.0(L) x 58.0(W) x 20.6(H) mm

Protection

ESD protection
1a Contact discharge level 2
1b Air discharge level 3 Implementation
of the standard: IEC61000-4-2
Lightning protection, Surge protection
