LKV676P-US

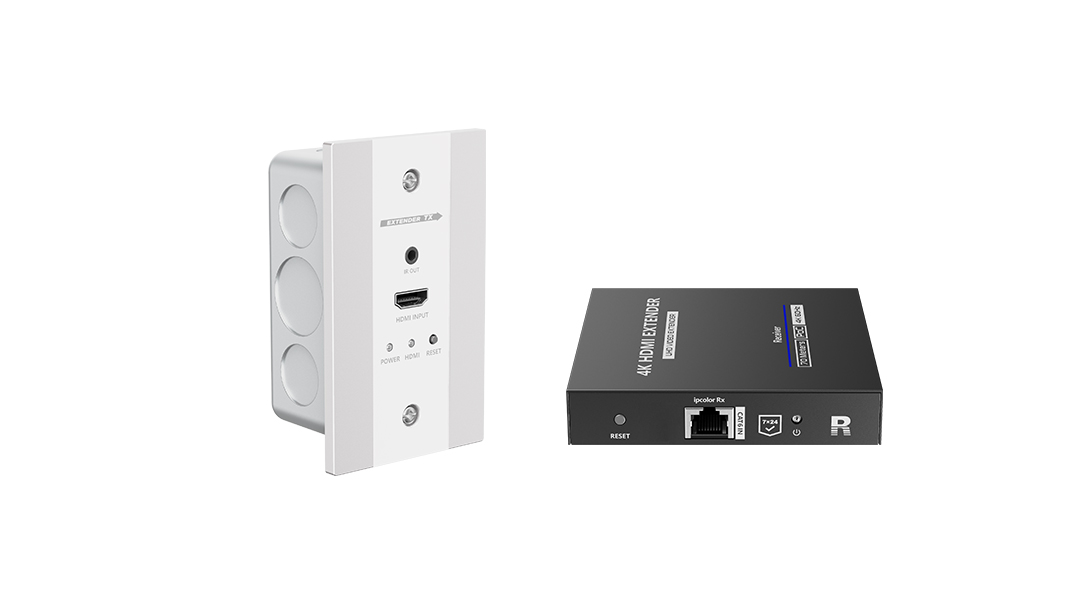

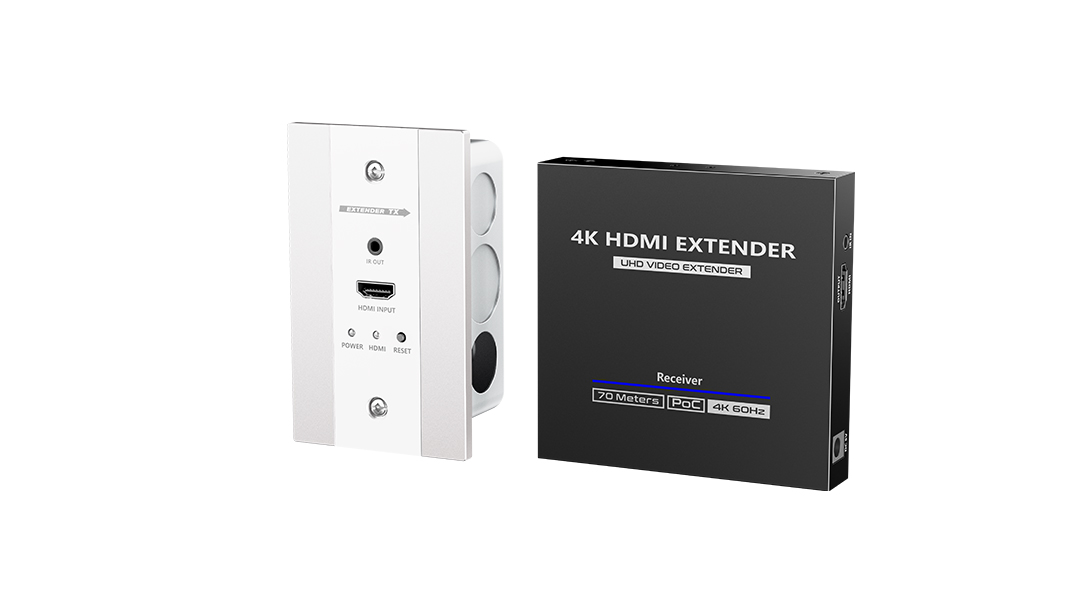

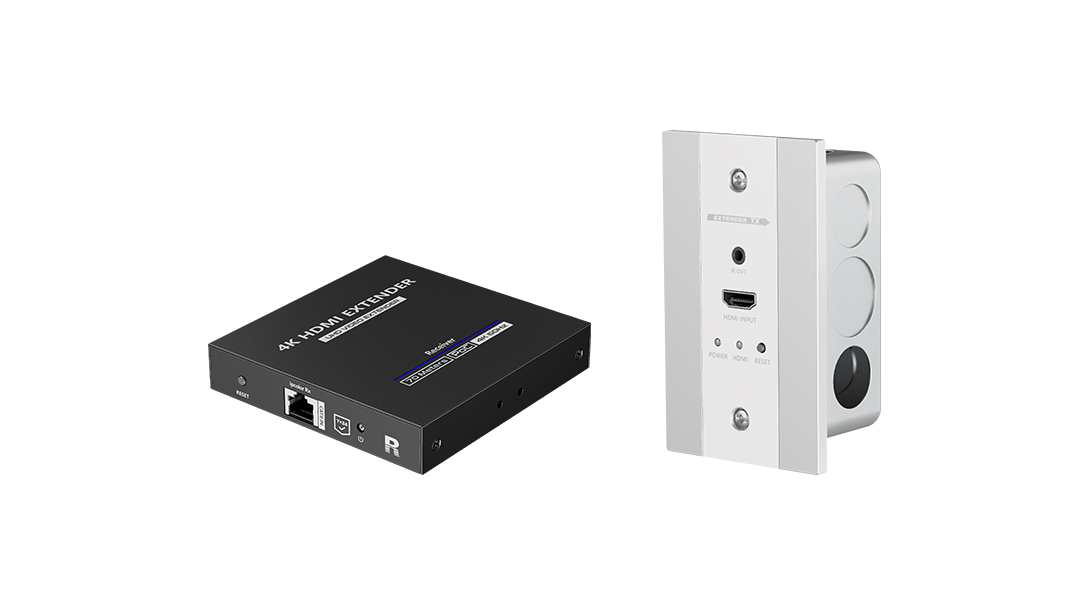

4K@60Hz HDMI Wall Plate Extender

This is an HDMI wall plate extender kit and it can realize zero-latency transmission .The transmission distance is up to 70meter over CAT6/6A/7 network cable for 4K@60Hz UHD HDMI signal . It supports IR pass back which allows to control video source signal from display side. This wall plate HDMI Kit supports POC feature and its transmitter is powered by receiver, no power is needed for its transmitter. It is a reliable ultra-high-definition video transmission solution that can be widely used in security monitoring, home theater, broadcasting and other fields.
Introduction
Parameters
Downloads


HDMI cable
≤5m
Maximum transfer rate
18Gbps
Maximum transmission bandwidth
600MHz
EDID passthrough
Support
Compatibility
HDMI 2.0(Deep color, 4K, HDR, YUV4:4:4)
HDCP 2.2,HDCP1.4
Resolutions
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 1920x1200
Transmission distance
CAT6/6A/7≤70m
Audio formats
LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
Receiving range
≤5m
Infrared frequency
20KHz~60KHz
Power Supply
TX: PoC (Powerd by RX)
RX:DC12V/1A
Power Consumption
Tx + Rx < 7W
Working temperature
0℃~60℃
Storage temperature
-30℃~70℃
Humidity
0~90%RH(No condensation)
Housing
Aluminum alloy + Iron
Weight
TX: 238.5g , RX:242.5g
Color
TX:Silver , RX: Black
Dimensions
TX: 70.0(L)x114.0(W)x51.0(H) mm
RX: 105.5(L)x102.5(W)x20(H)mm
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
