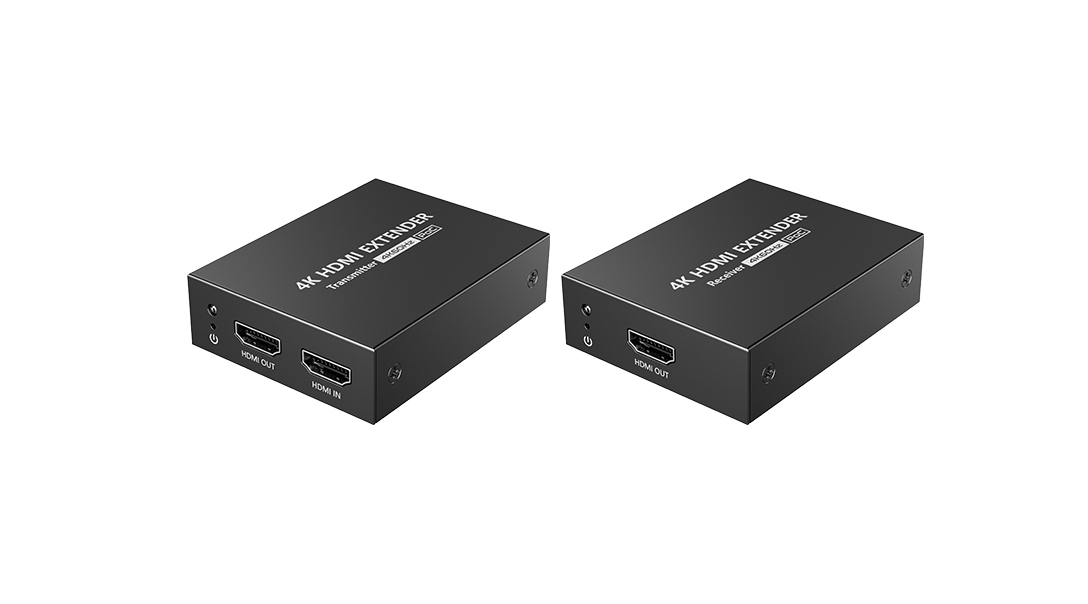

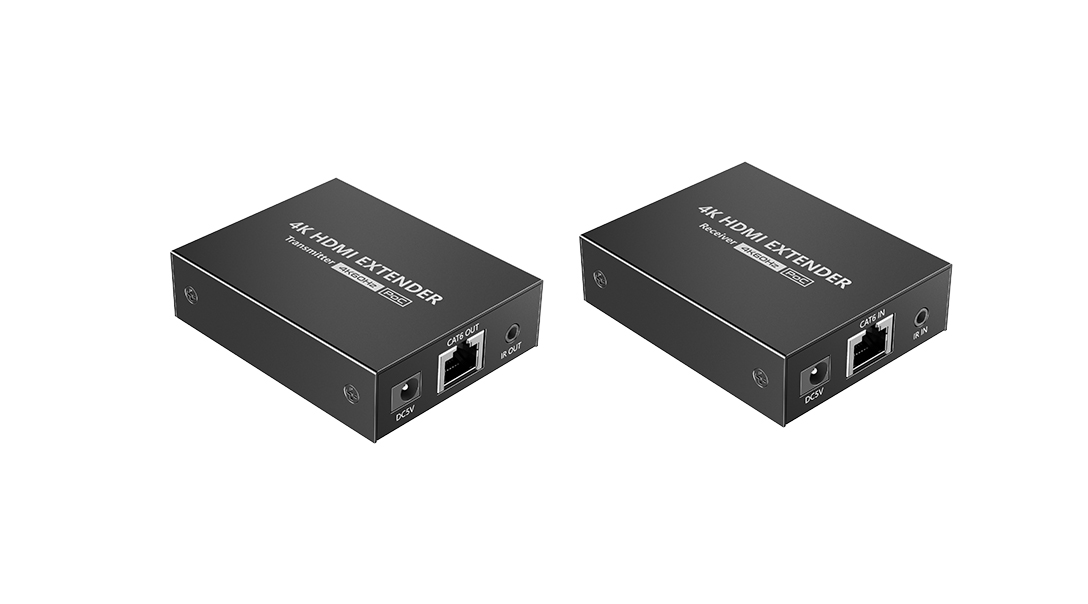

LKV465P

50M 4K@60HZ HDR HDMI™ Extender with POC

This is an HDMI™ point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz HDMI™ signal can be extended by 50m through CAT6/6A/7 network cable. It supports HDMI™ loop out, IR passthrough, etc. This kit is a reliable, ultra-high-defin
Introduction
Parameters
Downloads


HDMI Length
≤5m
Maximum transfer rate
18Gbps
Maximum transmission bandwidth
600MHz
EDID passthrough
Yes
Compatibility
HDMI 2.0(Deep color, 4K, HDR, YUV4:4:4)
HDCP 2.2, HDCP1.4
Resolutions
480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、 720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz、 3840x2160@24/25/30/50/60Hz、3440x1440、2560x1440、 2560x1080、2048x1080、1920x1440、1920x1080、 1280x960、1280x800、1280x768、1680x1050、 1360x768、1366x768、1600x900、1024x768、800x600
Transmission distance
4K transmission distance 50m
1080p transmission distance 70m
Audio formats
LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
IR interface
1x 3.5mm IR OUT Female
1x 3.5mm IR IN Female
Receiving range
≤5m
Infrared frequency
20KHz~60KHz
Power Supply
TX: DC5V/2A
RX: PoC(Powered by TX)
Power Consumption
TX+RX<5.5W
Working temperature
-20℃~60℃
Storage temperature
-30℃~70℃
Humidity
0~90%RH(No condensation)
Housing
Metal
Weight
TX : 130g
RX:130g
Color
Black
Dimensions
75.0(L)*60.0(W)*21.0(H)mm
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
