LKV318EDID-V3.0

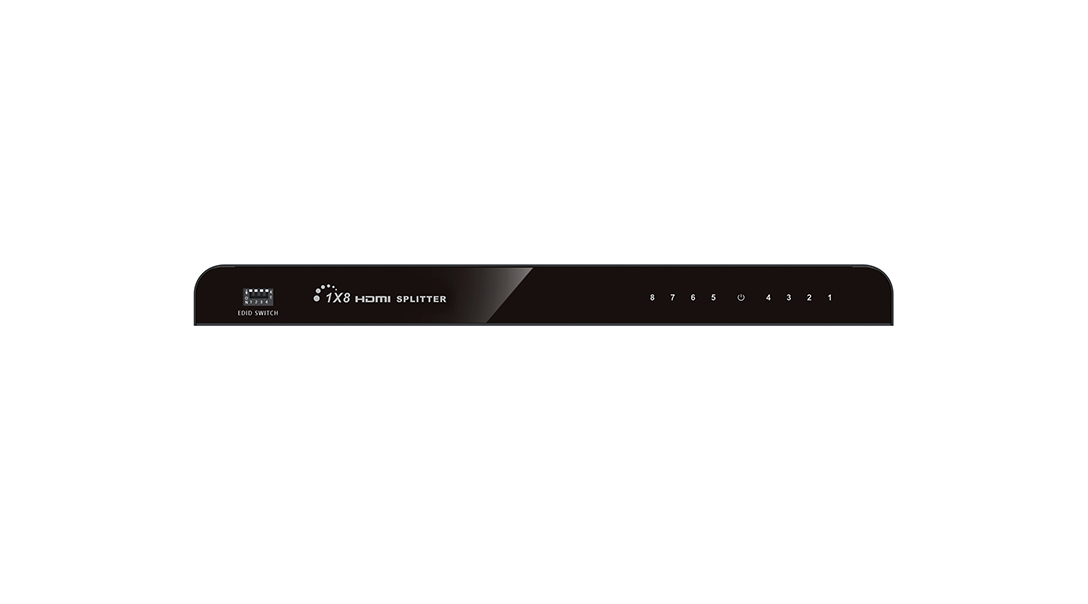

1×8 HDMI Splitter 4K@60Hz

1×8 HDMI splitter distributes 1 HDMI source to 8 HDMI displays simultaneously. Apply for STB, DVD, Media Player, Laptop, D-VHS and other HD-Player devices. It's Compatible with HDMI 3D and 4K×2K.
Introduction
Parameters
Downloads


Input ports
1 x HDMI
Output ports
8 x HDMI
Power indicator led
1 xLED
Signal indicator led
8 xLED
HDMI Version
Compatible with HDMI1.4,HDMI2.0
HDCP Version
Compatible with HDCP1.4,HDCP2.2
HDMI Resolution
480i/480p/576i/576p/720p/1080i/1080p/ 4K×2K@24/25/30/60Hz
Frequency Range
25MHz~600MHz
Video form
Support 3D video and 4K×2K@30/60Hz ultra HD video
Input and output TMDS signal
0.7~1.5Vp-p(TMDS)
Input and output DDC signal
5Vp-p(TTL)
Audio
Support standard audio and DSD(Direct Stream Digital)and HD(HBR) audio
HDR
Support
EDID management
Support smart EDID management, available to display different resolution monitors at the same time
Working temperature
0℃~60℃
Power supply
12V/1A
Power consumption
<8W
Dimension
262mm(L)x81.6mm(W)x23.5mm(H)
Weight
453g
Color
Black
