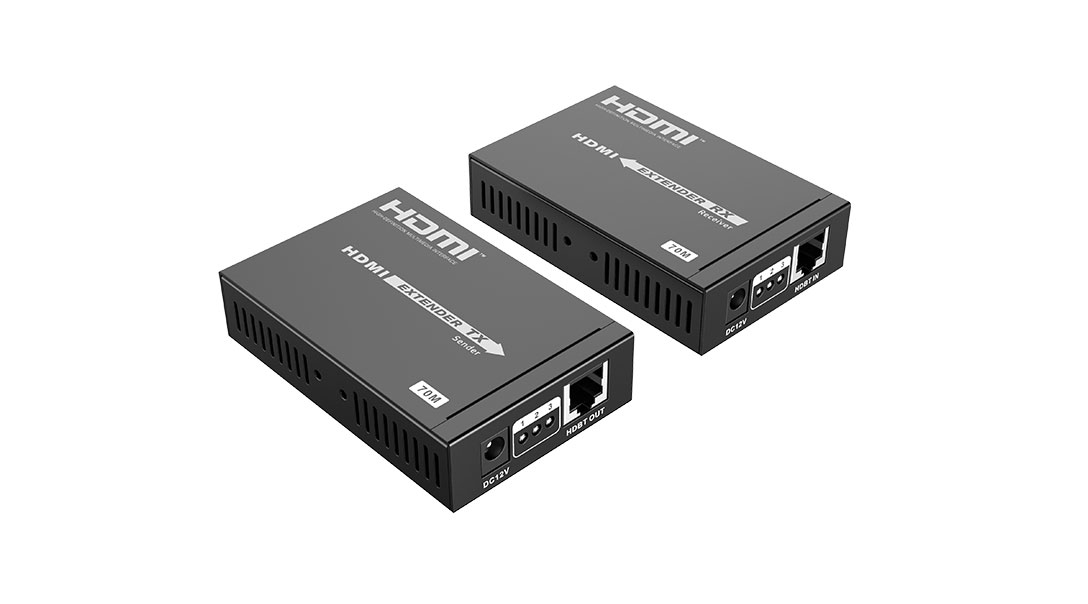

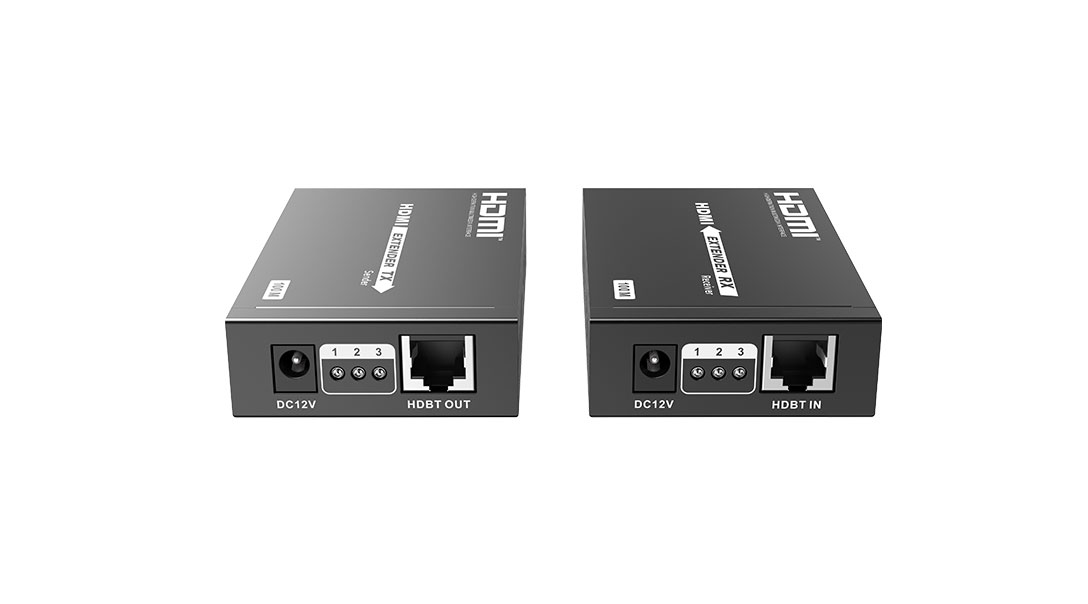

LKV375N

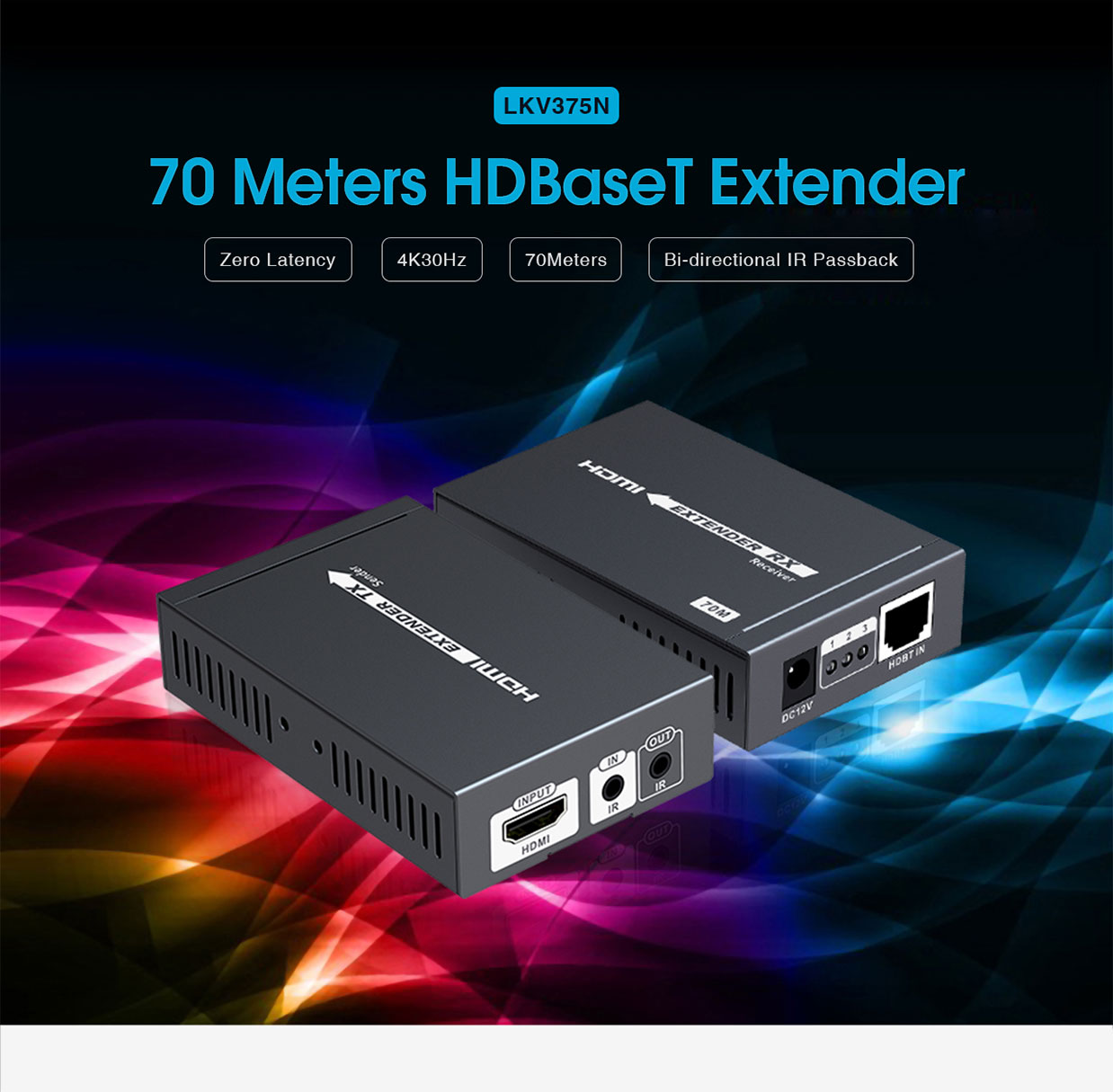

HDBaseT 4K@30Hz 70M Zero-Latency HDMI™ Extender

This HDBaseT single network cable extender transmits HDMI™ signal up to 70meters over cat6 fluently and clearly. It is lossless in signal and supports 3D, 24bits deep color, CEC and HDCP. Support ultra HD 4K@30Hz.

Introduction

Parameters

Downloads

Based on HDBaseT transmission technology, zero delay transmission can be realized.

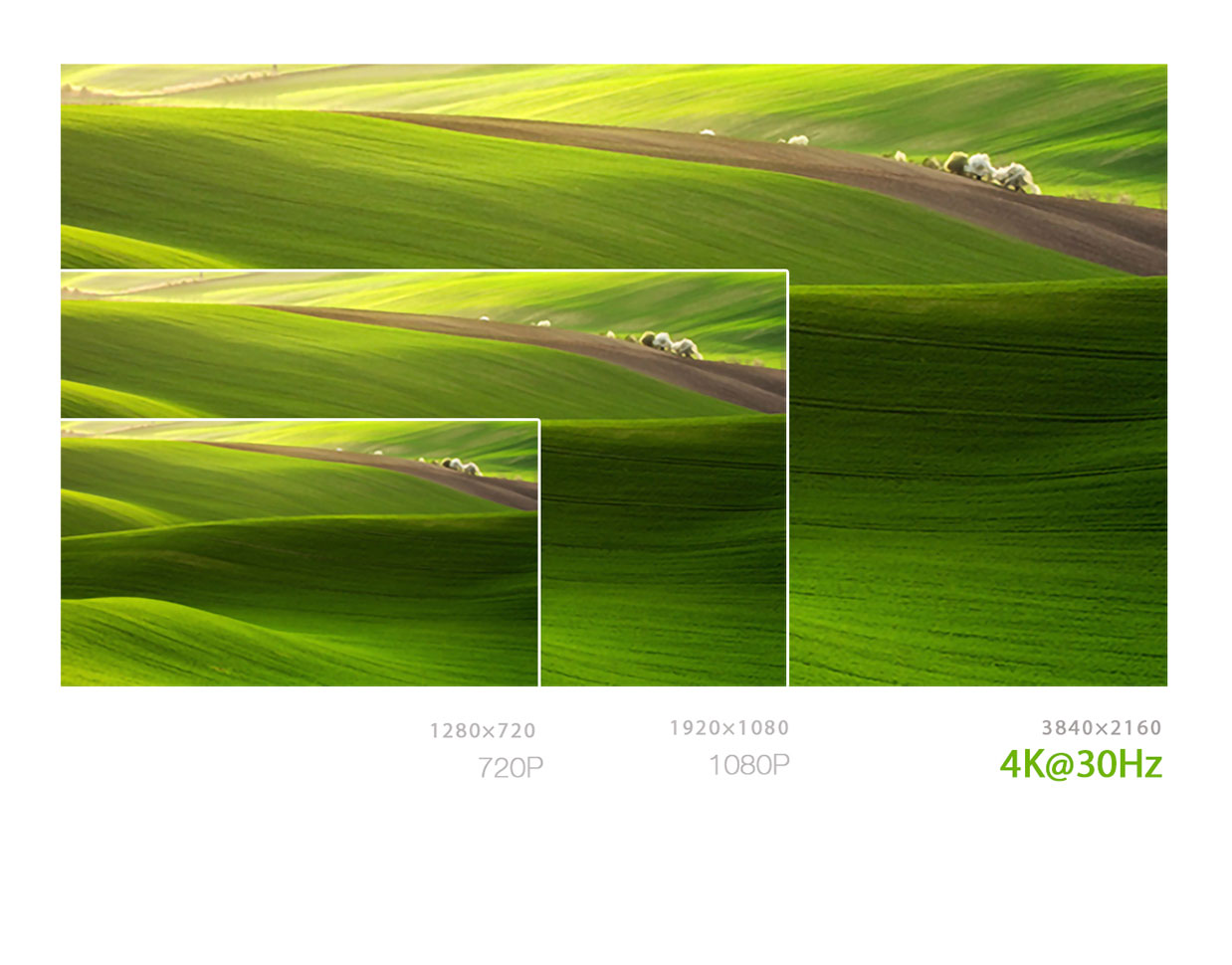

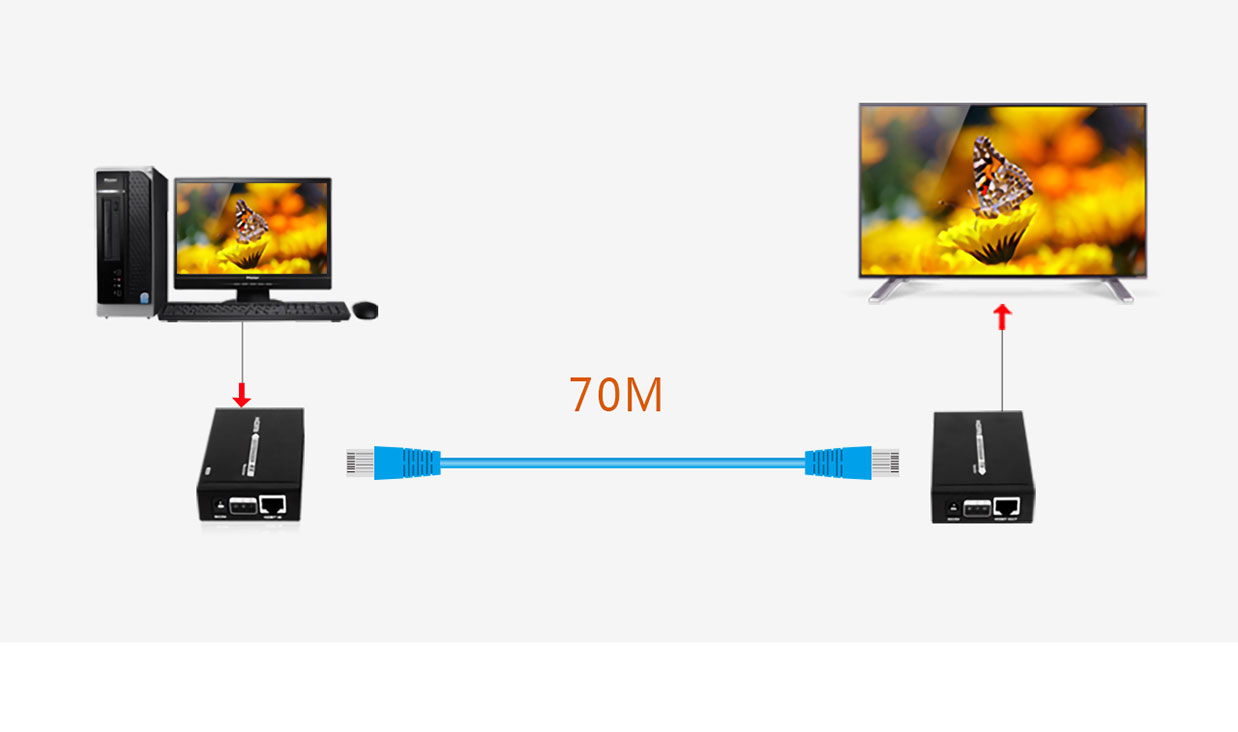

Supports up to 4K@30Hz UHD resolution, and can extend the 1080P signal to 70 meters through a CAT6/6A/7 network cable.

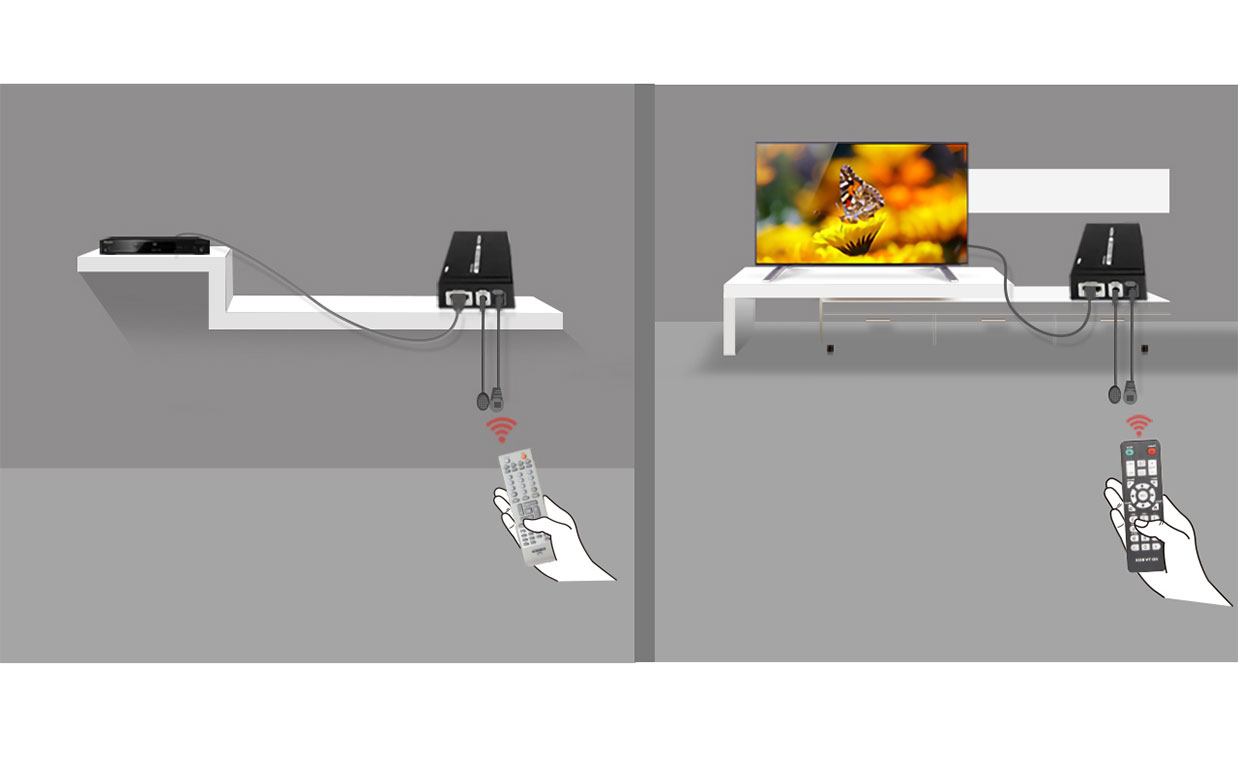

Support bi-directional IR passback, convenient for remote control.

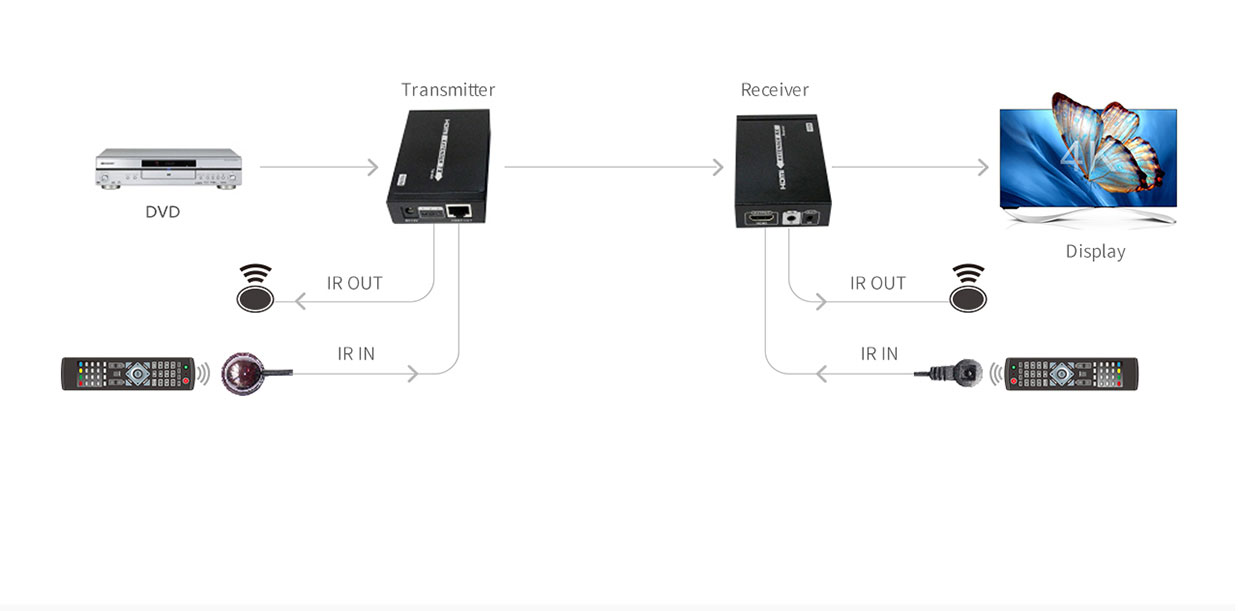

Connection

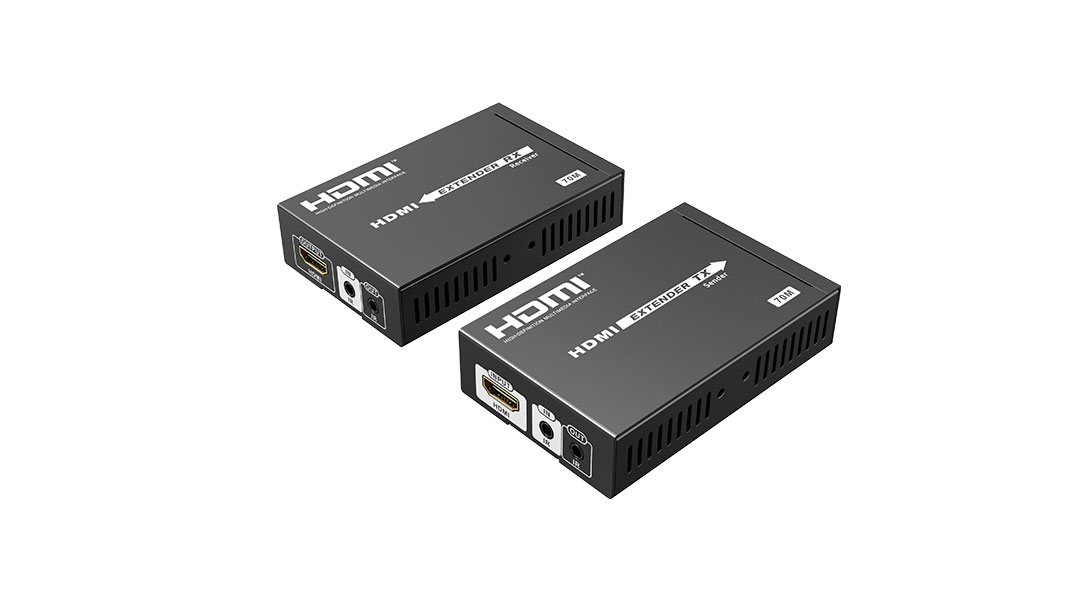

I / O Ports

Application

HDMI signal

Compatible with HDCP, support CEC and 24bits deep color

Resolution Supported

480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3D, 4Kx2K@24/25/30/30Hz

Audio

LPCM, DTS-HD, Dolby True HD

Network cable

CAT5E, CAT6, CAT6A, CAT7

CAT5E-60m

UP to 1080p@60Hz 36bpp

CAT5E-35m

1080p@60Hz 48bpp, 1080p@60Hz 3D,4K@30Hz

CAT6-70m

UP to 1080p@60Hz 36bpp

CAT6-40m

1080p@60Hz 48bpp, 1080p@60Hz 3D,4K@30Hz

Infrared back

Support 20~60kHz wide frequency devices and Bi-directional IR transmission

Power supply

DC12V/1A*2pcs

Power consumption

TX<3.5W RX<6W

Product dimension

98.5(L)x66.5(W)x23(H)mm*2pcs

Enclosure material

Metal

Weight

TX:79g RX:107g

Color

Black
